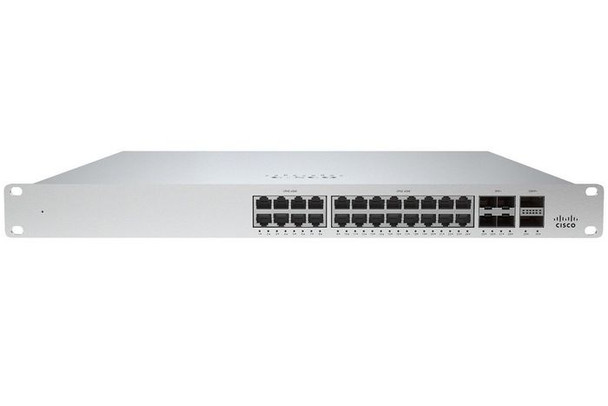

Cisco MS355-24X2-HW Meraki Ms355-24X2 Managed L3 MS355-24X2-HW

Cloud-Managed Switching for Performance-Driven Networks

Switch ports/stacking ports
- 8 � mGig ports
- 16 � 1G ports
- 2 � 40G or 4 � 10G fiber uplinks
- Stack up to 8 units
- QSFP28 stacking ports

Power/PoE
- All models include 740W
- Up to 30W per 1G port
- Up to 60W per mGig port
- Modular power supply/fans

Hardware platform
- Reliable platform with 24/7 Meraki Support
- 1RU rack mountable
- Voice and video QoS
- Non-blocking switch fabric

Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates

Switching capabilities
- Layer 3
- Warm spare redundancy (VRRP)
- OSPF Routing
- MAC forwarding entries, up to 32K
- DHCP Server, DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs

Data transmission



Forwarding rate



476 Mpps


Jumbo frames



9600


Jumbo frames support



Yes


MAC address table



32000 entries


Number of queues



8


Packet forwarding



Yes


Static route



Yes


Switching capacity



640 Gbit/s


Design



Certification



CSA-US, FCC, IC, CE, RCM, RoHS


Form factor



1U


Number of fans



3 fan(s)


Product colour



Silver


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Packet redirection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



Broadcast storm control



Yes


Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x


Number of VLANs



4094


Policy-based routing



Yes


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



Multicast VLAN, Stacked VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 45 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Cables included



AC, LAN (RJ-45)


Manual



Yes


User guide



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


QSFP+ module slots quantity



2


SFP+ module slots quantity



4


Power



AC input voltage



100 - 240 V


Power consumption (max)



1793 Watt


Power consumption (typical)



740 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



51.66 cm


Product Height



4.37 cm


Product Width



48.46 cm


Protocols



IPv4 & IPv6 features



Dual stack IPv4/IPv6


Routing protocols



CDP


Switching protocols



DSCP-to-CoS, RSTP, STP, CDP, LLDP


Security



Access Control List (ACL)



Yes


ARP attack prevention



Yes


Authentication



MAC-based authentication, Port-based authentication, Web-based authentication


Authentication type



RADIUS


BPDU filtering/protection



Yes


BPDU tunneling



Yes


DHCP features



DHCP snooping, DHCP relay


IGMP snooping



Yes


Loop protection



Yes


Neighbor discovery snooping



Yes


Password protection



Yes


Persistent MAC Learning (Sticky MAC)



Yes


Root protection



Yes


Whitelist



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
