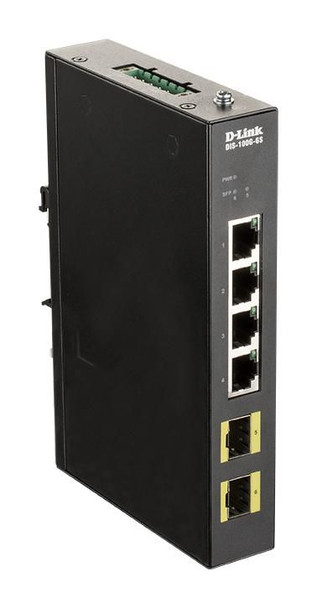

D-Link DIS-100G-6S 4-port Gigabit Industrial DIS-100G-6S

Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.

Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, NEMA?TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40�C to +75�C, and can cold start from -40�C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That�s why every DIS-switch comes with a 5-year D-Link warranty.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 112.2 x 29.1 x 89.4 mm.

Data transmission



Forwarding rate



8.928 Mpps


Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



4000 entries


Store-and-forward



Yes


Switching capacity



12 Gbit/s


Transmission method



Store-and-forward


Design



Certification



47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, � IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC


International Protection (IP) code



IP40


LED indicators



Link, Power


Product colour



Black


Rack mounting



No


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Network



Auto MDI/MDI-X



Yes


Copper ethernet cabling technology



1000BASE-T


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-20 - 65 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 85 �C


Package dimensions



Depth (package,cm)



23.2 cm


Gross Weight (Package, kg)



0.55 kg


Height (package,cm)



7.8 cm


Width (package,cm)



16 cm


Performance



Fanless



Yes


Harmonized System (HS) code



85176990


Mean time between failures (MTBF)



569768 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



4


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



2


Power



DC input voltage



12 - 48 V


Input current



1 A


Power consumption (max)



4.82 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.45000000000000007 kg


Product Depth



2.8 cm


Product Height



10.2 cm


Product Width



16.2 cm


Vendor information



Brand Name


D-Link


Warranty



5 Year(s)
