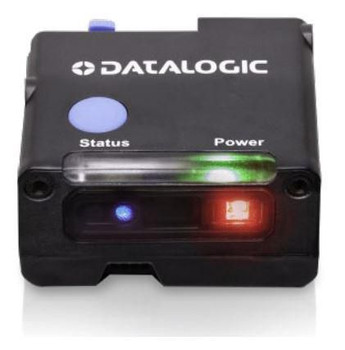

Datalogic Gryphon Gfs4590 Self Service Ticketing Retail Self-Checkout Healthcare GFS4590-BK-RED

Datalogic Gryphon GFS4590 Self Service, Ticketing, Retail, Self-checkout, Healthcare Fixed Mount Barcode Scanner - Cable Connectivity - Black - USB Cable Included - 820.42 mm Scan Distance - 1D, 2D - LED - Imager - Area, Omni-directional - USB, Serial - IP54 EASY INTEGRATION Designed for easy integration and simple installation, the Gryphon 4500 Fixed Series scan modules provide ready-to-use versatile solutions for kiosks and machine manufacturers. The GFS4500 module can be easily integrated with little effort in different enclosures from multiple sides with its small regular size and various fixing points. The "naked" version GFE4500 is ideal for tailor-made fully integrated solution. MAXIMUM RELIABILITY The Gryphon 4500 Fixed Series scan modules are made to last with a durable design for maximum uptime. You can rely on them for both indoor and outdoor applications with the IP54 sealing, the UV protected scratch resistant output window, the wide range operating temperature and the great resistance to accidental drops, shock, and vibrations. RS-232 and USB/RS-232 models have an integrated cable while the USB models are equipped with a locking clip to prevent the USB cable from coming loose or disconnecting. The 5-year factory warranty proves the Gryphon 4500 Fixed Series has been designed to last. TOP PERFORMANCE The Gryphon 4500 Fixed Series 2D scan modules features the most advanced Megapixel sensor technology with distinctive red or white illumination technology with adjustable brightness for outstanding reading performance. The wide angle optics allows snappy scanning of any 1D and 2D barcodes and it starts reading at almost contact while offering improved motion tolerance and first pass decoding of fast-moving codes. The speedy reading of tickets, boarding passes, loyalty cards, and coupons from mobile phone displays is granted by the ultimate decoding algorithms you can count on. BEST FEEDBACK -?? Datalogic's 'Green Spot' technology coupled with a high visibility topfront LED and integrated loud beeper with adjustable intensity provide superior good-read feedback.
Power Description

Standby Current115 mA

Technical Information

Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Dot Code
Dot Matrix

Postal Codes:Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes:EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Digital Watermarking:Digimarc Barcodes

Connectivity TechnologyCable
FeaturesBeep
Notification LED
Grayscale Image Capture
Scanning Distance820.42 mm
Light SourceLED
Image FormatsBMP
TIFF
JPEG
Drop SpecificationWithstands repeated drops from 1.5 m / 5 ft onto a concrete surface

Scan PatternOmni-directional
Area
Image Sensor TypeImager
Illumination TypeLED
Scan ModeTrigger
Illumination ColorRed
Cable Type IncludedUSB
Scanning Capability1D
2D
Field of View (Horizontal)51??
Field of View (Vertical)32??
Reading Angle (Skew)60??
Reading Angle (Pitch)60??
Reading Angle (Roll)180??
Motion Tolerance1778 mm/s
Maximum Ambient Light120000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.13 mm
Maximum Element Resolution (Code 39)0.25 mm
Minimum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (DataMatrix)0.38 mm
Minimum Element Resolution (PDF417)0.25 mm
Image Sensor Resolution1280 x 800


Interfaces/Ports

Host InterfaceUSB
Serial

Physical Characteristics

Weight (Approximate)95 g
DurabilityWater Resistant
Dust Resistant
Form FactorFixed Mount
Product ColorBlack
Color FamilyBlack

General Information

Product TypeBarcode Scanner
Manufacturer Part NumberGFS4590BKRED
datalogic
ManufacturerDatalogic S.p.A
Product ModelGFS4590
Product NameGRYPHON 4500 GFS4590 Barcode Scanner
Product LineGryphon
Product Series4500
Brand NameDatalogic

Miscellaneous

Application/UsageHealthcare
Retail
Self Service
Self-checkout
Ticketing
Package Contents1 x GRYPHON 4500 GFS4590 Barcode Scanner
1 x 10 cm cable RJ50 connector

Environmentally FriendlyYes
Ingress Protection (IP) RatingIP54
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
