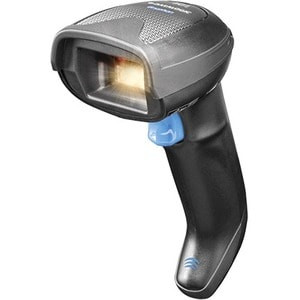

Datalogic Gryphon Gm4500. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Sen GM4500-BK-HD-433

Datalogic Gryphon GM4500. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wireless, Standard interfaces: RF Wireless, Wireless range: 50 m. Product colour: Black, International Protection (IP) code: IP52. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 3250 mAh. Weight: 235 g, Width: 109 mm, Depth: 68 mm IMAGING TECHNOLOGY The Gryphon?�� 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance. WIRELESS COMMUNICATIONS Featuring Bluetooth?� wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System?�� (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution. WIRELESS CHARGING One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance. SIMPLE TO USE AND DEPLOY The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking. Datalogic's Motionix?�� motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
Network & Communication

Radio FrequencyYes

Miscellaneous

Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)

General Information

Product TypeBarcode Scanner
Manufacturer Part NumberGM4500-BK-HD-433
datalogic
ManufacturerDatalogic S.p.A
Product ModelGM4500
Product NameGryphon GM4500 Handheld Barcode Scanner
Product LineGryphon
Product Series4500
Brand NameDatalogic


Physical Characteristics

Weight (Approximate)235 g
Form FactorHandheld
Product ColorBlack

Technical Information

Barcode Symbology Supported1D Codes:Autodiscriminates all standard 1D codes including GS1 DataBar?�� linear codes.
2D Codes:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Postal codes:Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)
Stacked codes:EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites
Digital Watermarking:Digimarc Barcodes

Connectivity TechnologyWireless
Image Sensor TypeImager
Scanning Capability1D
2D
