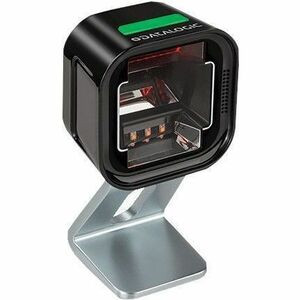

Datalogic Magellan 1500I Retail Commercial Service Healthcare Laboratory Hands-F MG1503-30200

Datalogic Magellan 1500i Retail, Commercial Service, Healthcare, Laboratory Hands-free Barcode Scanner - Cable Connectivity - Black - 299.72 mm Scan Distance - 1D, 2D - LED - Imager - Area, Omni-directional - IP52 HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc Barcode decoding, the Magellan 1500i is the most capable scanner in its class. A WIDE VARIETY OF USES The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket. ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.
Physical Characteristics

Form FactorHands-free
Product ColorBlack
Color FamilyBlack

Technical Information

Barcode Symbology Supported
1D Codes:Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:Aztec Code, Data Matrix, MaxiCode, QR Code

Postal Codes:Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417

Digital Watermarks:Optional support for Digimarc?- Barcodes/GS1 DW Code

Connectivity TechnologyCable
FeaturesNotification LED
Ergonomic Design
Checkpoint EAS
Beep
Scanning Distance299.72 mm
Light SourceLED
Image FormatsJPEG
BMP
Drop SpecificationWithstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Scan PatternArea
Omni-directional
Image Sensor TypeImager
Illumination TypeLED
Scanning Capability1D
2D
Reading Angle (Skew)75??
Reading Angle (Pitch)65??
Reading Angle (Roll)360??
Maximum Ambient Light86100 lux
Minimum Print Contrast25%
Minimum Element Resolution (DataMatrix)0.33 mm
Maximum Element Resolution (DataMatrix)0.61 mm
Air Electrostatic Discharge (+/-)25kV
Image Sensor Resolution1280 x 800


General Information

Product TypeBarcode Scanner
Manufacturer Part NumberMG1503-30200
datalogic
ManufacturerDatalogic S.p.A
Product Model1500i
Product NameMAGELLAN 1500i Barcode Scanner
Product LineMagellan
Brand NameDatalogic

Miscellaneous

Application/UsagePharmacy
Healthcare
Laboratory
Convenience Store
Commercial Service
Retail
Ticketing
Ingress Protection (IP) RatingIP52
