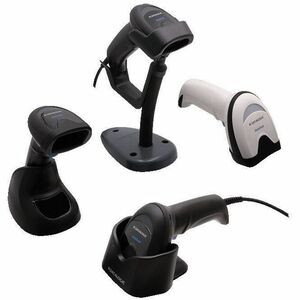

Datalogic Quickscan Qd2590. Type: Handheld Bar Code Reader Scanner Type: 1D/2D L QD2590-WHK1

Datalogic QuickScan QD2590. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Shock resistant, Water resistant. Power source type: DC, USB, Input voltage: 5 V. Weight: 145 g, Width: 148 mm, Depth: 68 mm IMAGING TECHNOLOGY The market trend towards 2D barcodes has clearly spread across the whole data capture industry. This is particularly true at Retailers' where POS check-out activities face an increased need for 2D scanning and at the same time rely on reading mobile phone displays and loyalty cards. THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT The QuickScan 2500 2D imager is your trusted companion at the POS check-out. It knows very well the importance of prompt readings, whatever the barcode, regardless of whether it's hard-to-read, poorly printed or damaged, and it easily scans mobile devices and through plexiglass barriers, all at an incredibly affordable price. EXTREME PRECISION CONVEYED A sense of extreme precision is conveyed to the operator at any time, facilitating their job by clearly showing where the scanner is pointing. From the intuitive blue dot of the QW model, you can even get all the extra-precision you need with the outstanding aimer of the QD, QM and QBT models, made of two blue sharply-defined triangles. Datalogic's 'Green Spot' technology then confirms the good read, perfectly centered on the barcode and between the two triangles, backed up by a powerful beeper that can be adjusted to your preferred level of sound. GO CORDLESS, AT YOUR CONVENIENCE Featuring narrow band radio communications with Datalogic's STAR Cordless System (QM models) or Bluetooth wireless technology (QBT models), the QuickScan 2500 provides the broadest choice, to best manage delivery even in times of shortage of Bluetooth micro-chips. STAR radio ensures interference-free communication with low sensitivity to obstacles, avoiding delays and increasing productivity, particularly in busy environments with Bluetooth and Wi-Fi. Featuring the distinctive design and family feeling of the Datalogic general purpose handheld scanners, the QuickScan 2500 series offers a variety of stands and accessories to best fit in any in-store environment.
Network & Communication

Radio FrequencyYes

Battery Information

Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3250 mAh
Maximum Battery Recharge Time4 Hour

Interfaces/Ports

Host InterfaceUSB
Serial
Keyboard Wedge
Multi-interface

Technical Information

Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code

Postal Codes:Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes:EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites.

Digital Watermarking:Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

Connectivity TechnologyCable
FeaturesBeep
Notification LED
Grayscale Image Capture
Scanning Distance510.54 mm
Light SourceLED
Image FormatsTIFF
BMP
JPEG
Drop SpecificationWithstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface

Image Sensor TypeImager
Illumination TypeLED
Illumination ColorRed
Cable Type IncludedUSB
Scanning Capability2D
1D
Reading Angle (Skew)65??
Reading Angle (Pitch)65??
Reading Angle (Roll)360??
Motion Tolerance762 mm/s
Maximum Ambient Light110000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.13 mm
Maximum Element Resolution (Code 39)0.25 mm
Minimum Element Resolution (DataMatrix)0.25 mm
Minimum Element Resolution (PDF417)0.17 mm
Air Electrostatic Discharge (+/-)16kV
Image Sensor Resolution1280 x 800


General Information

Product TypeBarcode Scanner Kit
Manufacturer Part NumberQD2590-WHK1
datalogic
ManufacturerDatalogic S.p.A
Product ModelQD-2500
Product NameQuickScan QD-2500 Barcode Scanner Kit
Product LineQuickScan
Product Series2500
Brand NameDatalogic

Physical Characteristics

Weight (Approximate)145 g
DurabilityWater Resistant
Dust Resistant
Form FactorHandheld
Height126 mm
Width148 mm
Depth68 mm
Product ColorWhite
Color FamilyWhite

Miscellaneous

Application/UsageLight/Clean Manufacturing
Ticketing
Commercial Service
Government
Healthcare
Hospitality
Transportation
Manufacturing
Pharmacy
Retail
Self-checkout
Package ContentsQuickScan 2500 QD-2500 Barcode Scanner
USB Cable 90A052278

Ingress Protection (IP) RatingIP52
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
