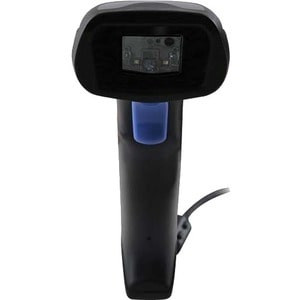

Datalogic Qw2520. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Sensor Type QW2520-BKK1S

Datalogic QW2520. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant, Water resistant. Power source type: DC, USB, Input voltage: 5 V. Weight: 145 g, Width: 148 mm, Depth: 68 mm Reliable, repeatable performance that you need The new QuickScan 2500 imager from Datalogic is an entry level 2D corded handheld scanner that punches well above its weight when it comes to performance. It is the robust and reliable companion in the retail sector for your POS checkout, built for many years of continued service. It effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today's Covid safeguards in place, the QuickScan 2500 imager is optimized to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price, making the QuickScan QuickScan 2500 imager the latest and most desirable addition to the Datalogic family of renowned handheld barcode scanners. Improve performance with user friendly feedback When using the QuickScan 2500 imager, you want a low-cost device with top guaranteed scanning performance and a reliable read every time, period. You want an easy to aim device that gives clear audible, tactile and visual feedback on each read, good or bad. You want a device that sits comfortably in your hand and never gives you fatigue, no matter how long your working shift. The QuickScan 2500 imager does not fail, even when continually used for long periods of time and provides plenty of freedom of movement with high quality cables that are robust enough to withstand constant abuse. Any type of barcode - 1D, 2D, postal codes, stacked or composite barcodes, dotcodes, and digital watermark codes - the QuickScan 2500 imager has you covered. Connect, configure, use As well as being the very affordable and easy to use handheld scanning solution for your business, the QuickScan 2500 imager is extremely easy to setup. It will give you the best fit for your store environment. The simple and seamless configuration of the scanner with connectivity to all manner of hosts, makes this the only solution you will need for your business. It is well built and will comfortably survive 5 ft drops and over 10 million trigger presses. The adjustable brightness of the light source makes it comfortable to suit most people's eyes. With Motionix technology, the imager is ready for action as soon as it is picked up. All in all, you have at your fingertips the perfect device for scanning all your goods. Perform, perform, perform The QuickScan 2500 imager boasts a very rich feature set for out-of-the-box capabilities. The 1 MP optics provide best-in-class scanning and depth of field for all your applications. No need to worry about scanning orientation as it is omnidirectional. It will seamlessly read codes displayed on smartphone screens, making promotions and coupons easy to manage. The imager is equipped with an easy to see aiming system that consists of two blue triangles, providing full guidance with extreme precision. This makes it easy for the staff to target the right code to read, and the patented Green Spot technology from Datalogic is clearly projected as a visual indicator upon each successful read.
Interfaces/Ports

Host InterfaceSerial
USB
Keyboard Wedge

Technical Information

Barcode Symbology Supported1D :Auto discriminates all standard 1D codes including GS1 DataBar?�� linear codes.
2D :Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Dot code

Postal Codes :Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes :EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Digital Watermarking :Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

Connectivity TechnologyCable
Scanning Distance510.54 mm
Image FormatsJPEG
BMP
TIFF
Drop SpecificationWithstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Scan PatternOmni-directional
Image Sensor TypeImager
Stand IncludedYes
Cable Type IncludedUSB
Scanning Capability1D
2D
Reading Angle (Skew)65??
Reading Angle (Pitch)65??
Reading Angle (Roll)360??
Motion Tolerance762 mm/s
Maximum Ambient Light110000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.13 mm
Maximum Element Resolution (Code 39)0.25 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (PDF417)0.17 mm


Physical Characteristics

Weight (Approximate)145 g
Form FactorHandheld
Product ColorBlack
Color FamilyBlack

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part NumberQW2520-BKK1S
datalogic
ManufacturerDatalogic S.p.A
Product ModelQW2520
Product NameQuickScan 2500
Product LineQuickScan
Product Series2500
Brand NameDatalogic

Miscellaneous

Application/UsageLight/Clean Manufacturing
Industrial
Hospitality
Healthcare
Ticketing
Commercial Service
Retail
Government
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP52
