Digi

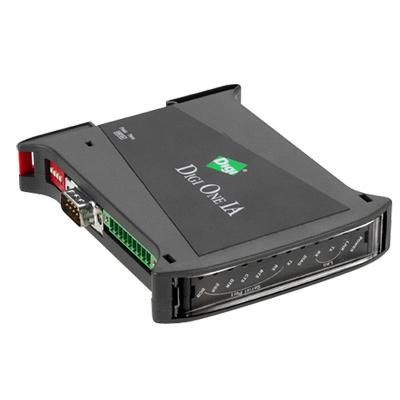

Digi 70001862 One IA serial server 70001862
- UPC:
- 0663072926052
- MPN:
- 70001862
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Digi One IA provides reliable, cost-effective network connectivity for virtually any serial device. This unobtrusive and easy-to-use serial server delivers serial-to-Ethernet connectivity to Programmable Logic Controllers (PLCs), Remote Terminal Units (RTUs), process and quality equipment, motors, drives, bar-code readers, operator displays and other industrial devices. It is ideal for applications where TCP Socket, UDP Socket, or UDP multicast functionality is needed.
Digi One IA supports most industrial automation protocols through TCP/UDP connections, serial bridging or COM port redirection using Digi�s patented RealPort� software. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet. By creating a Modbus bridge, multiple Modbus/TCP masters can share Modbus serial slaves, or Modbus serial masters can access Modbus/TCP slaves.
Digi One IA is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that automatically detects Digi One devices on the network. Using the web interface, users can configure advanced functions into their application.
Design
Safety
UL 60950, UL1604, EN60950, CAN/CSA C22.2 No.60950
Operational conditions
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
0 - 60 �C
Other features
Compatible operating systems
Windows 7/Vista/XP/Server 2003/Server 2008 SCO OpenServer 5/6 Solaris Intel/SPARC Linux HP-UX AIX
Package dimensions
Gross Weight (Package, kg)
0.1 kg
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Input voltage
9 - 30 V
Product dimensions
Net Weight (Product, kg)
0.064 kg
Protocols
Supported network protocols
RFC 2217, TCP/UDP, DHCP/RARP, ARP-Ping, Modbus ASCII/RTU
Technical details
Certification
FCC
Ethernet LAN data rates
10, 100
Isolation
1.5 kV
Management protocols
HTTP, DPAR
Serial interface type
RS-232/422/485
Serial ports quantity
1
Surge protection voltage
2 kV
Vendor information
Brand Name
Digi
Warranty
1 Year(s)
Weight & dimensions
Dimensions (WxDxH)
230 x 120 x 101 mm
View AllClose
Digi One IA supports most industrial automation protocols through TCP/UDP connections, serial bridging or COM port redirection using Digi�s patented RealPort� software. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet. By creating a Modbus bridge, multiple Modbus/TCP masters can share Modbus serial slaves, or Modbus serial masters can access Modbus/TCP slaves.
Digi One IA is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that automatically detects Digi One devices on the network. Using the web interface, users can configure advanced functions into their application.
Design
Safety
UL 60950, UL1604, EN60950, CAN/CSA C22.2 No.60950
Operational conditions
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
0 - 60 �C
Other features
Compatible operating systems
Windows 7/Vista/XP/Server 2003/Server 2008 SCO OpenServer 5/6 Solaris Intel/SPARC Linux HP-UX AIX
Package dimensions
Gross Weight (Package, kg)
0.1 kg
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Input voltage
9 - 30 V
Product dimensions
Net Weight (Product, kg)
0.064 kg
Protocols
Supported network protocols
RFC 2217, TCP/UDP, DHCP/RARP, ARP-Ping, Modbus ASCII/RTU
Technical details
Certification
FCC
Ethernet LAN data rates
10, 100
Isolation
1.5 kV
Management protocols
HTTP, DPAR
Serial interface type
RS-232/422/485
Serial ports quantity
1
Surge protection voltage
2 kV
Vendor information
Brand Name
Digi
Warranty
1 Year(s)
Weight & dimensions
Dimensions (WxDxH)
230 x 120 x 101 mm
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
