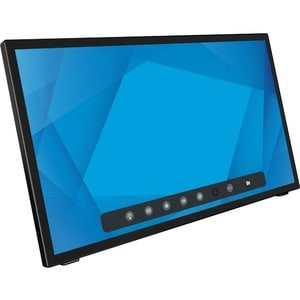

Elo Touch Solutions Et2270L-2Uwa-0-Bl-G 22In Lcd E510259

ET2270L-2UWA-0-BL-G 22IN LCD The bezel just got smaller. The 2270L 22" touchscreen offers up to a 70% reduction in the bezel compared to similar models. Minimalistic design to fit any space. From 20 degrees to 70 degrees, angle the display where you want it. Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA compatibility. Built-in Speakers and integrated IO. Durable, energy efficient touchscreen. Scratch-resistant glass surface. IK07 impact resistant. ES8.0 certified for greater energy efficiency. Increase viewing comfort with low blue light and flicker free features. Navigate the OSD directly on the touchscreen. We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Audio

SpeakersYes

Power Description

Frequency50 Hz
60 Hz

Touchscreen Information

Touchscreen TypeTouchPro Projected Capacitive
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10

Technical Information

Aspect Ratio16:9
Response Time14 ms
FeaturesPower Switch
Scratch Resistant
Low Blue Light
On-screen Display (OSD)
OSD/Power Lock
LED Indicator
Flicker-free
ComfortView
Anti-glare
Mount TypeWall Mountable
Viewable Screen Size54.6 cm (21.5")
Screen ModeFull HD
PlacementTabletop
Horizontal Viewing Angle178??
Vertical Viewing Angle178??
Backlight TechnologyLED
Panel TechnologyThin Film Transistor (TFT)
Horizontal Frequency30 kHz to 82 kHz
Vertical Frequency50 Hz to 75 Hz
Screen Size Class22"
Impact Protection (IK) RatingIK07
Response Time Details14 ms Typical


Interfaces/Ports

USBYes
HDMIYes
VGAYes
DisplayPortYes

Video

Brightness250 cd/m??
Color Supported16.7 Million Colours
Maximum Resolution1920 x 1080
Native Contrast Ratio1,000:1

Miscellaneous

Environmentally FriendlyYes
Energy Efficiency CertificationENERGY STAR 8.0
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

General Information

Product TypeLCD Touchscreen Monitor
Manufacturer Part NumberE510259
elotouch
ManufacturerElo Touch Solutions, Inc
Product Model2270L
Product Name2270L 22" Full HD Touchscreen Monitor
Brand NameElo

Physical Characteristics

Weight (Approximate)4.10 kg
Height302.4 mm
Width504.7 mm
Depth41.3 mm
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Product ColorBlack
Color FamilyBlack
