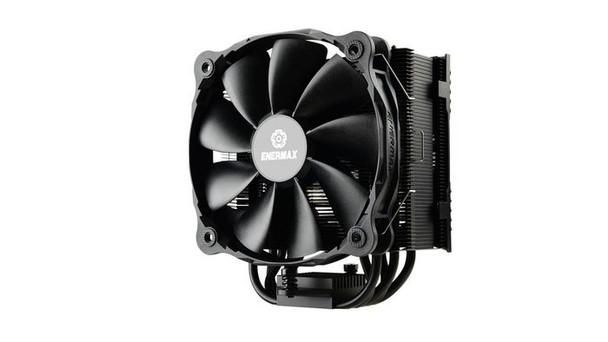

Enermax ETS-T50A-FSS Ets-T50 Axe Processor Cooler ETS-T50A-FSS

The ETS-T50 AXE Silent Edition is a high-performance CPU cooler with a cooling capacity up to 230W TDP and leading innovative technologies. The asymmetric design with five 6 mm heat pipes with the Heat Pipe Direct Touch technology ensures a quick heat transfer and allows the installation of high RAM modules. The cooler is equipped with a 14cm ENERMAX fan with patented Twister Bearing technology.

Air Flow Optimizations
Pressure Differential Flow Design � increases the airflow up to +15%. The air will be guided through conic tunnels to speed up the airflow. Due to the faster transportation of the cool air, heat will be removed more quickly.

Vortex Generator Flow (VGF) � patented
Vortex generators are applied in aviation industry. They make sure that the air stream is lead as close as possible along the airplane�s wings. During the CPU cooler development, the Enermax engineers recognized the potential of this technology to optimize the air stream inside the heat sink: Small spoilers on the fins, the so-called Vortex generators, conduct the air close along the heat pipes. Much more fresh air can be transferred to the back of the heat pipes.

Heat Pipe Direct Touch (HDT)
With the patented Heat Pipe Direct Touch technology the heat pipes rest directly on the CPU. The advantage against a base plate is the faster transfer of heat without any additional resistance.

Asymmetric Heat Pipe Design
The asymmetrical heatpipe design creates additional space for the fan to prevent high RAM modules from being blocked.

Enermax High Pressure Blade
The ETS-T50 AXE Silent Edition is equipped with a 14cm High Pressure Blade fan designed for use on CPU coolers. The patented Twister Bearing technology ensures smooth operation and a long service life of up to 160,000 hours MTBF.
The 9 High Pressure Blades rotate at 500 � 1.000 RPM to ensure ultra silent operation.

Thermal Conductive Coating
The Thermal Conductive Coating is a thin protective layer that prevents oxidation without compromising the heat transfer.

Air Guide
The equipped Air Guide offers to the user the possibility to direct the airflow into the preferred direction.
This allows the possibility to create the perfect case airflow according to the needs of the system.

Design



Fan connector



4-pin


Number of fans



1 fan(s)


Number of heat pipes



5


Logistics data



Harmonized System (HS) code



84733080


Other features



Heatsink dimensions (W x D x H)



135.2 x 65 x 160 mm


Thermal grease



Yes


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



1.12 kg


Height (package,cm)



13 cm


Width (package,cm)



22 cm


Packaging content



Mounting kit



Yes


Performance



Airflow



55.45 m�/hr


Fan diameter



14 cm


Maximum air pressure



2.13 mmH2O


Maximum airflow



94.21 cfm


Mean time between failures (MTBF)



160000 Hour


Minimum air pressure



0.57 mmH2O


Minimum airflow (imperial)



29.78 cfm


Noise level (high speed)



22 dB


Noise level (low speed)



13 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



1000 RPM


Rotational speed (min)



500 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket 755, Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2+


Type



Cooler


Power



Rated voltage



12 V


Thermal Design Power (TDP)



230 Watt


Product dimensions



Net Weight (Product, kg)



0.86 kg


Product Depth



10.95 cm


Product Height



16.3 cm


Product Width



14.42 cm


Vendor information



Brand Name


Enermax


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



140 x 140 x 25 mm


Heat pipes diameter



6 mm
