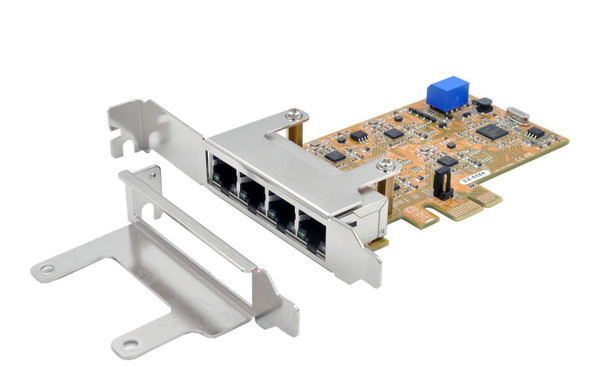

Exsys EX-6084 Network Card Internal EX-6084

The EX - 6084 is a fast quad Gigabit Ethernet card for the PCIe x1 bus. The EX - 6084 supports a data transfer rate of up to 1000Mbit per second per port. Larger amounts of data can be trans- ferred faster and more efficiently in the network. The EX - 6084 supports Half and Full Duplex as well as NWay auto - negotation to automatically adapt to network speeds (10/100/1000 Mbps.). Furthermore, the board is equipped with Auto - MDI/MDI - X and offers a very extensive support of various operating systems. Installation is very easy and each port can be turned on and off during operation. With the EX - 6084 a low profile bracket is supplied for narrow computers up to 8cm height.

Design



Chipset



4 x Realtek RTL8153B


Internal



Yes


LED indicators



Activity


Network



Auto MDIX IEEE



Yes


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Jumbo frames



16000


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


VLAN tagging



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 °C


Storage temperature (T-T)



-40 - 75 °C


Other features



Flow control support



Yes


Priority queuing supported



Yes


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging content



Manual



Yes


Packaging data



Drivers included



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



4


Host interface



PCI Express


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



6.7 cm


Product Width



11.5 cm


Vendor information



Brand Name


Exsys


Warranty



1 Year(s)
