Exsys

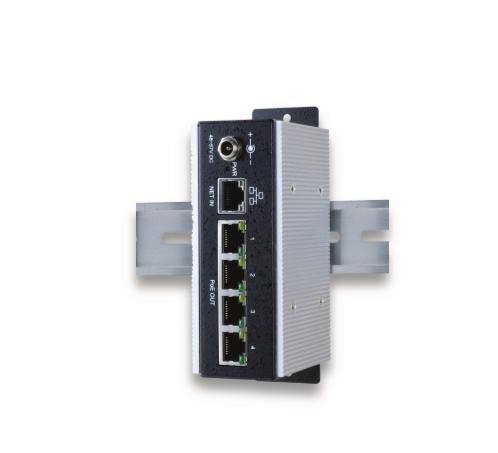

Exsys EX-6100POE Network Switch Gigabit EX-6100POE
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- EX-6100POE
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The EX-6100PoE power injector adds PoE power to an the 4 Ethernet PoE port so you can
deliver power and data over a single Ethernet cable to your Ethernet devices in the field. Power over Ethernet functionality allows network administrators to install the EX-6100PoE up to 100 meters from PoE devices such as Wireless Access Points, IP Cameras, � It supports the best location for device may be on a utility pole outside or in the ceiling where there is no power outlet.
The EX-6100PoE injects 48~57V DC power for PoE PDs. With its small size, it makes the PoE
solution is not only easy to use but easy to install in out of the way spaces. The EX-6100PoE then works as the Power Source Equipment (PSE) for the Powered Device (PD). It gives installers greater installation flexibility since the device no longer has to be in the immediate proximity of an outlet. Using Power over Ethernet (PoE), compliant with IEEE 802.af, the EX-6100PoE removes the burden of needing a nearby power outlet and allows your network solution reliable and easy to use.
Data transmission
Jumbo frames
9000
Jumbo frames support
Yes
Design
DIN rail mounting
Yes
Housing material
Metal
LED indicators
Y, Yes
Product colour
Black, Grey
Network
10G support
No
Auto MDI/MDI-X
Yes
Networking standards
IEEE 802.3af
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 60 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Packaging data
Manual
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power
DC input voltage
48 - 57 V
Power consumption (max)
30 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
6.15 cm
Product Height
4.32 cm
Product Width
13.3 cm
Vendor information
Brand Name
Exsys
Warranty
1 Year(s)
View AllClose
