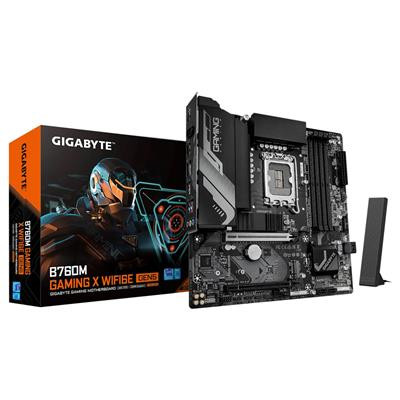

Gigabyte B760M GAMING X WIFI6E GEN5 Socket 1700/B760 Express/Ddr5/S-Ata 6Gb/S/Mi B760M GAMING X WIFI6E GEN5

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
8334


Product Specifications



Product Name:

Gigabyte B760M GAMING X WIFI6E GEN5 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte



Model Number:

B760M GAMING X WIFI6E GEN5



EAN:

4719331872953



Package Type:

Retail



Warranty:

3 Years



BIOS:


1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

Intel B760 Express



CPU Interface:

Socket 1700



CPU Support:

https://www.gigabyte/uk/Motherboard/B760M-GAMING-X-WIFI6E-GEN5/support#Support-Cpu-Support



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 7600 (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 4.0 x4



LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 6E



Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.3



On-Board Audio:

Realtek Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

5



Back USB 3.2 Port(s) Type-A Gen 1:

3



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x Antenna connectors (2T2R)



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 2:

2



Thunderbolt AIC Connector(s):

2



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):


3 x Addressable LED strip headers
1 x RGB LED strip header




Internal Button(s):

1 x Q-Flash Plus



Package Width:

27cm



Package Length:

27cm



Package Height:

7cm



Net Weight:

1.03Kg



Gross Weight:

1.42Kg



Special Features:


PCIe Gen5 Performance: Perfect Sync to Win.
Supports Intel Core 14th/ 13th/12 processors.
Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.
Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution.
Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support.
Fast Networks: 2.5GbE LAN and Wi-Fi 6E 802.11ax.
Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI.
Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.




Package Contents:


Motherboard
Manual
1 x Antenna
2 x SATA Cables
M.2 Screw
One pack of M.2 thick/thin rubber pads
