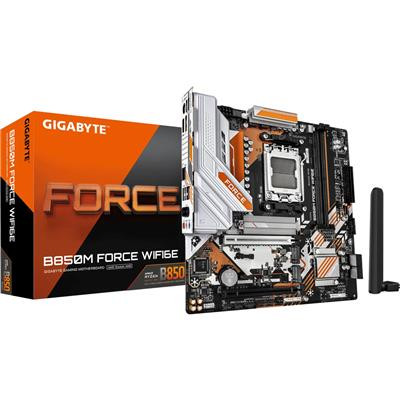

Gigabyte B850M FORCE WIFI6E Socket Am5/B850/Ddr5/S-Ata 6Gb/S/Micro Atx B850M FORCE WIFI6E

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
0189


Product Specifications



Product Name:

Gigabyte B850M FORCE WIFI6E (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte



Model Number:

B850M FORCE WIFI6E



EAN:

4719331874308



Package Type:

Retail



Warranty:

3 Years



BIOS:


1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

gigabyte /Motherboard/B850M-FORCE-WIFI6E-rev-12/support#Support-Cpu-Support



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 9600 (O.C.)



Max. Memory Support:
8GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4




LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 6E



Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.3



On-Board Audio:

Realtek Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

1



Back USB 3.2 Port(s) Type-C Gen 1:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x Antenna connectors (1T1R)



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):


3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header




Internal Button(s):

1 x Q-Flash Plus



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

27cm



Package Length:

27cm



Package Height:

7cm



Net Weight:

0.85Kg



Gross Weight:

1.22Kg



Special Features:


X3D Turbo Mode to unleash new era gaming performance.
AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors.
Digital 8+2+2 phases VRM solution.
Dual Channel DDR5: 2 x DIMMs with AMD EXPO Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch: PCIe x16 Slot with Quick Release Design.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 3 x M.2 slots, including 1x PCIe 5.0 x4.
Fast Networking: 802.11ax Wi-Fi6E and 2.5GbE LAN.
Extended Connectivity: DP, HDMI.




Package Contents:


Motherboard
Manual
Quick Installation Guide
1 x Antenna
2 x SATA cables
1 x G Connector 5
One pack of M.2 thick/thin rubber pads
