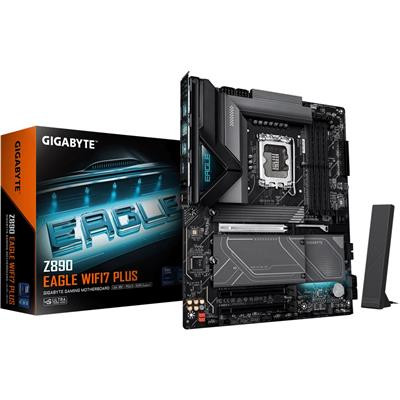

Gigabyte Z890 EAGLE WIFI7 PLUS Socket 1851/Z890 Express/Ddr5/S-Ata 6Gb/S/Atx Z890 EAGLE WIFI7 PLUS

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
9896


Product Specifications



Product Name:

Gigabyte Z890 EAGLE WIFI7 PLUS (Socket 1851/Z890 Express/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.gigabyte



Model Number:

Z890 EAGLE WIFI7 PLUS



EAN:

4719331880842



Package Type:

Retail



Warranty:

3 Years



BIOS:


1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

Intel Z890 Express



CPU Interface:

Socket 1851



CPU Support:

gigabyte /Motherboard/Z890-EAGLE-WIFI7-PLUS/support#Support-Cpu-Support



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 9466+ (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

2



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
1 x PCIe Gen 4.0 x4




LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 7



Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.4



On-Board Audio:

Realtek ALC1220 CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

3



Back USB 3.2 Port(s) Type-A Gen 2:

2



Back USB4 Port(s) Type-C:

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Other Port(s):

2 x Antenna connectors (2T2R)



Back Button(s):


1 x Power
1 x Reset
1 x Q-Flash Plus
1 x Clear CMOS




24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

4



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2:

1



Front Panel Audio Connector:

1



Internal Other Port(s):


3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header




Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

29cm



Package Length:

34cm



Package Height:

8cm



Net Weight:

2.50Kg



Gross Weight:

2.90Kg



Special Features:


Ultra Turbo Mode: Unlock the Hidden performance.
Supports Intel Core Ultra processors (Series 2).
Digital twin 14+1+2 phases VRM solution.
D5 Bionic Corsa for Infinite Memory Performance.
AI Perfdrive: Provides optimal and customized BIOS preset profile for users.
Premium Compatibility: 4 x DDR5 with XMP Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
EZ-Latch Click: M.2 heatsinks with screwless design.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
Fast Networking: 2.5GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort.
High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors.




Package Contents:


Motherboard
Manual
Quick Installation Guide
2 x SATA cables
I/O Shield
