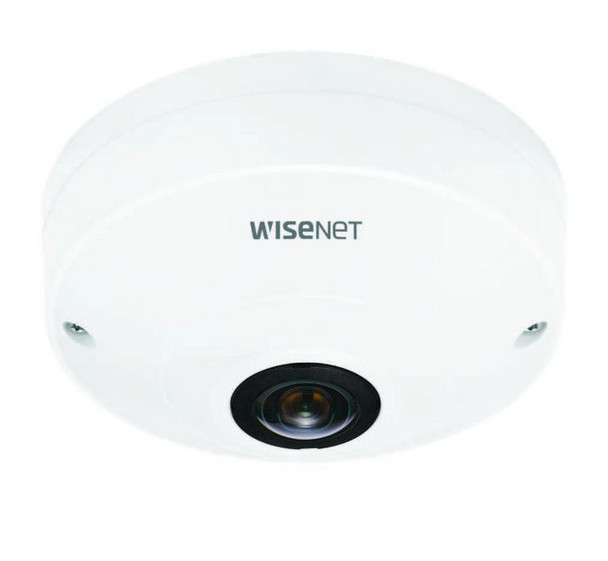

Hanwha QNF-8010 6MP Indoor Fisheye QNF-8010

Wisenet Q network indoor fisheye, 6MP CMOS sensor, 2048x2048 @ 30fps, 1.14mm fixed lens (187�), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus, motion detection, tampering, people counting, heatmap, SD/SDHC/SDXC slot, HLC, PoE, IP42

Camera



Camera pan control



No


Camera shutter speed



2 - 1/12000 Second


Camera shutter type



Electronic


Camera tilt control



No


Lens viewing angle, diagonal



187 �


Lens viewing angle, horizontal



187 �


Lens viewing angle, vertical



187 �


Minimum illumination



0.2 lx


Viewing angle, diagonal



187 �


Viewing angle, horizontal



187 �


Viewing angle, vertical



187 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


Housing material



Plastic


Mounting type



Ceiling


Product colour



White


Features



NDAA Compliance



Yes


Image sensor



Optical sensor size



1/1.8 "


Sensor type



CMOS


Lens system



Closest focusing distance



0.3 m


Fixed focal length



1.14 mm


Maximum aperture number



2.5


Management features



Web browser



Yes


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Quality of Service (QoS) support



Yes


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour


Wi-Fi



No


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



-10 - 55 �C


Storage relative humidity (H-H)



0 - 90 %


Storage temperature (T-T)



-50 - 60 �C


Package dimensions



Depth (package,cm)



14.3 cm


Gross Weight (Package, kg)



0.06125 kg


Height (package,cm)



11.8 cm


Width (package,cm)



14.3 cm


Packaging content



Number of cameras



1


Performance



Certification



FCC, UL, CE, EAC


Connectivity technology



Wired


Day/night mode



Yes


Placement supported



Indoor


PTZ control



Yes


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Power consumption (Power over Ethernet (PoE))



6.4 Watt


Power consumption (typical)



4.6 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.32 kg


Product Depth



14.3 cm


Product Height



11.8 cm


Product Width



14.3 cm


Security



Anti-flicker



Yes


IP address filtering



Yes


Security algorithms



EAP-TLS


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



256 MB


Maximum memory card size



256 GB


Vendor information



Brand Name


Hanwha


Warranty



3 Year(s)


Video



Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Flip & mirror



Yes


Maximum resolution



2048 x 2048 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



640 x 640, 720 x 720, 960 x 960, 1280 x 1280, 2048 x 2048


Total megapixels



6 MP


Video formats supported



H.264, H.265


Video intelligence analytic



Yes


Video streaming



Yes


Weight & dimensions



Diameter



9.9 cm
