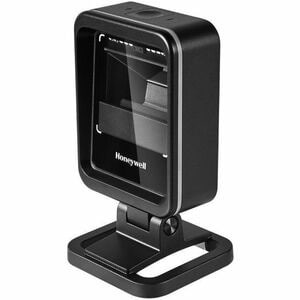

Honeywell Genesis Xp 7680G. Type: Fixed Bar Code Reader Scanner Type: 1D/2D Sens 7680GSR-2USB-1-R

Honeywell Genesis XP 7680g. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Power consumption (typical): 2.5 W, Input voltage: 5 V. Weight: 340 g, Width: 40 mm, Depth: 80 mm The Honeywell Genesis--- XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. BIG VALUE IN A SMALL PACKAGE Increased Productivity The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell's field proven XP scanning technology handles poorly printed and damaged barcodes with ease. Impressive depth of field allows barcodes to be read even if placed right at the face of the scanner. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient. Fantastic User Experience The compact and modern design offers a contemporary experience with minimal counter space required. The 360?? tri-color LED ring highlights the scanning target area and provides clear user feedback, offering an intuitive experience for both employees and customers. The scanning user experience is a key element for delightful customer engagement. The warm, white light illumination is more pleasing to the eye. The automatic object detection feature turns the illumination completely off between scans, so the scanner is not a distraction.
Power Description

Input Current500 mA
Maximum Operating Power Consumption2.50 W

Technical Information

Barcode Symbology Supported
Reads standard 1D, 2D, PDF, 2D, Dotcode symbologies, Digimarc supported

Connectivity TechnologyCable
FeaturesBeep
Scanning Distance251.46 mm
Drop Specification
50 drops @ 1.5 m

Scan PatternArea
Image Sensor TypeImager
Stand IncludedYes
Scan ModeTrigger
Illumination ColorWhite
Cable Type IncludedUSB
Scanning Capability1D
2D
Field of View (Horizontal)48??
Field of View (Vertical)30??
Reading Angle (Skew)65??
Reading Angle (Pitch)65??
Motion Tolerance4013.20 mm/s
Maximum Ambient Light100000 lux
Minimum Print Contrast20%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)0.13 mm
Minimum Element Resolution (DataMatrix)0.25 mm
Image Sensor Resolution1280 x 800


Miscellaneous

Application/UsageHealthcare
Package ContentsGenesis XP 7680g Barcode Scanner Kit
USB Type A 3m straight cable
Stand

Ingress Protection (IP) RatingIP52

Interfaces/Ports

Host InterfaceKeyboard Wedge
IBM 46XX
USB
Serial

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part Number7680GSR2USB1R
honeywell/sites/uk/
ManufacturerHoneywell International, Inc
Product Model7680g
Product NameGenesis XP 7680g Barcode Scanner Kit
Product LineGenesis XP
Brand NameHoneywell

Physical Characteristics

Weight (Approximate)340 g
Form FactorHands-free
Length80 mm
Height105 mm
Width40 mm
Product ColorBlack
Color FamilyBlack
RuggedYes
