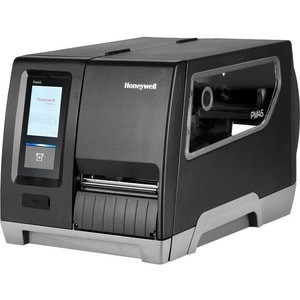

Honeywell Pm45 Industrial Thermal Transfer Printer Monochrome Label Print Gigabi PM45A10000000300

Honeywell PM45 Industrial Thermal Transfer Printer - Monochrome - Label Print - Gigabit Ethernet - USB - USB Host - Serial - Display Screen - 2159 mm Print Length x 105.92 mm (4.17"") Print Width - 300 mm/s Mono - 300 dpi - 114 mm Label Width - Fingerprint, IPL, ZPL II, DPL, XML, Direct Protocol (DP) Emulation - For PC Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management. Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels. As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server. Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies. The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
Display & Graphics

Display ScreenYes

Memory

Standard Memory256 MB

Interfaces/Ports

USBYes
Serial PortYes
USB HostYes

Network & Communication

EthernetYes
Ethernet TechnologyGigabit Ethernet
Network ReadyYes

Power Description

Input Voltage230 V AC 0 V AC
Power SourceAC Supply

Physical Characteristics

Weight (Approximate)13.20 kg
Height295 mm
Width284 mm
Depth483 mm

Technical Information

Application/UsageIndustrial
Barcode Symbology SupportedGM1724
1D
2D
UPC/EAN Shipping Container
HIBCC
ISBT-128
POSTNET
UCC/EAN 128 Serial Shipping Container
Maximum Print Width105.92 mm (4.17")
Recommended UseLabel Print
FeaturesRugged
Print TechnologyThermal Transfer
Print Color CapabilityMonochrome
Maximum Print Length2159 mm
Maximum Print Resolution (dpi)300


Miscellaneous

Platform SupportedPC
Environmentally FriendlyYes
Energy StarYes
Energy Efficiency CertificationENERGY STAR 3.0
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Fonts & Emulation

Language EmulationXML
ZPL II
ZSim2
IPL
DPL
Fingerprint
Direct Protocol (DP)

Media Types & Handling

Maximum Roll Diameter213 mm
Media TypeGap
Notch
Label
Continuous Label
Black Mark
Maximum Label Width114 mm

General Information

Product TypeThermal Transfer Printer
Manufacturer Part NumberPM45A10000000300
honeywell/sites/uk/
ManufacturerHoneywell International, Inc
Product ModelPM45
Product NamePM45 Thermal Transfer Printer
Product SeriesPM45
Brand NameHoneywell
