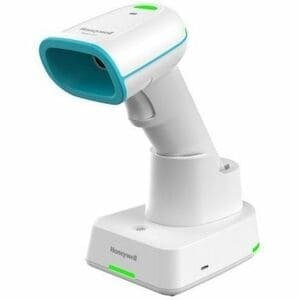

Honeywell Xenon Ultra 1962H. Type: Handheld Bar Code Reader Scanner Type: 1D/2D 1962HHD-5USB-9WC

Honeywell Xenon Ultra 1962h. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Keyboard wedge, RS-232, USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Anti-bacterial, Drop proof, Electrostatic Discharge (ESD) protection. Power source type: Supercapacitor. Weight: 255 g, Width: 70.4 mm, Depth: 108.2 mm Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care. The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals. Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide. Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations. The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection. FEATURES AND BENEFITS:In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations. The Xenon Ultra 1962 battery and battery-free are available in a premium contactless version, helping reduce the number of failed devices due to corrosion. Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break may not impact operations upon return. The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets. Multiple operating modes are available to help ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp
Interfaces/Ports

Host InterfaceUSB

Technical Information

Connectivity TechnologyWireless
FeaturesVibration
Notification LED
Beep
Scanning Distance814.58 mm
Light SourceLED
Scanner RangeHigh Density
Scan PatternArea
Image Sensor TypeImager
Illumination TypeLED
Illumination ColorWhite
Cable Type IncludedUSB
Scanning Capability1D
2D
Field of View (Horizontal)42??
Field of View (Vertical)36??
Reading Angle (Skew)65??
Reading Angle (Pitch)65??
Reading Angle (Roll)360??
Motion Tolerance4000 mm/s
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)0.51 mm
Minimum Element Resolution (DataMatrix)0.13 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Minimum Element Resolution (PDF417)0.13 mm
Maximum Element Resolution (PDF417)0.17 mm
Air Electrostatic Discharge (+/-)15kV
Contact Electrostatic Discharge (+/-)8kV
Image Sensor Resolution1280 x 1080


Network & Communication

BluetoothYes
Radio FrequencyYes

Power Description

Input Current500 mA
Maximum Operating Power Consumption2.50 W

Battery Information

Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3300 mAh
Battery IncludedYes
Maximum Battery Run Time22 Hour
Maximum Battery Recharge Time4.50 Hour

Physical Characteristics

Form FactorHandheld
Length109.2 mm
Height160 mm
Width71.1 mm
Product ColorWhite
Color FamilyWhite

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part Number1962HHD5USB9WC
honeywell/sites/uk/
ManufacturerHoneywell International, Inc
Product Model1962h
Product NameXenon Ultra 1962H Cordless Bluetooth Handheld Scanner
Product LineXenon Ultra
Brand NameHoneywell

Miscellaneous

Application/UsageInventory
Specimen Collection
Healthcare
Component Tracking
Pharmacy
Hospitality
Ingress Protection (IP) RatingIP41
IP52
