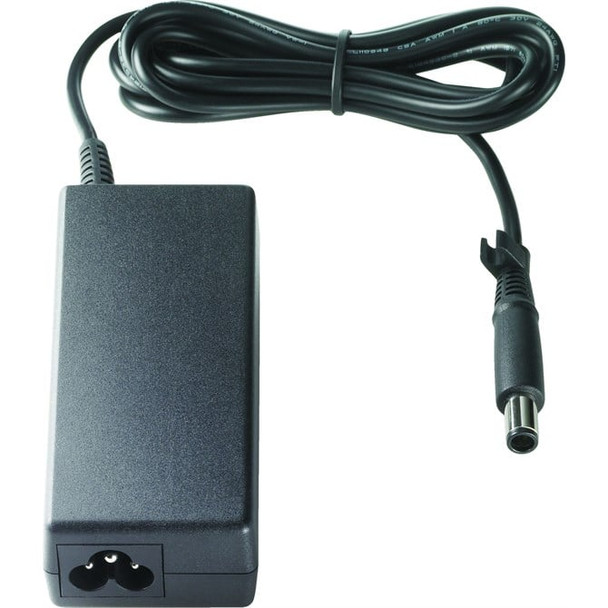

HP 90W Smart AC Adapter H6Y90AA#ABU

Reliable power for your mobile world
Provide optimal power and help offset power fluctuations to your HP notebook with a HP 90W Smart AC Adapter. Now available with a new right-angled (90?) connector that reduces cable stress and an optional 4.5mm to 7.4mm conversion dongle. As a replacement or back-up adapter, be prepared with the right connection.

Specs




Features


Purpose

What the product is used for.

Laptop


Power supply type

The type of power supply which this product uses.

Indoor


Output power

The power that the device can produce.

90 W


Compatibility

The other products, software and hardware this product can be used with.

HP Notebooks with 4.5mm, 7.4mm connectors


HP segment

Business


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 35 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 85 ?C


Operating relative humidity (H-H)
- 95%


Certificates


Compliance certificates

CCC, Federal Communications Commission (FCC), CE


Weight & dimensions


Width

The measurement or extent of something from side to side.
7 mm


Depth

The distance from the front to the back of something.

50 mm


Height

The measurement of the product from head to foot or from base to top.

29 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

370 g


Packaging data


Package width

The distance from one side of the packaging to the other.
5 mm



Packaging data


Package depth

The distance from the front to the back of the packaging.

245 mm


Package height

The distance from the top to the bottom of the packaging.

77 mm


Package weight

Weight of the packaged product.

643 g


Brand-specific features


HP GTIN (EAN/UPC) with options

(ABB) 887758607756; (ABU) 887758607770


HP GTIN (EAN/UPC)

887758607756, 887758607770


Technical details


Box contents

AC power adapter; 1 Power Cord; 4.5 mm to 7.4 mm conversion dongle; Warranty Card


General Product Safety Regulation (GPSR) URL

support.hp /us-en/document/ish_6126692-6126777-16?openCLC=true


Logistics data


Harmonized System (HS) code

85044095


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China


Products per pallet

Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.

800 pc(s)


Master (outer) cases per pallet layer
pc(s)


Layers per pallet

8 pc(s)


Other features


UNSPSC-code

39121006
