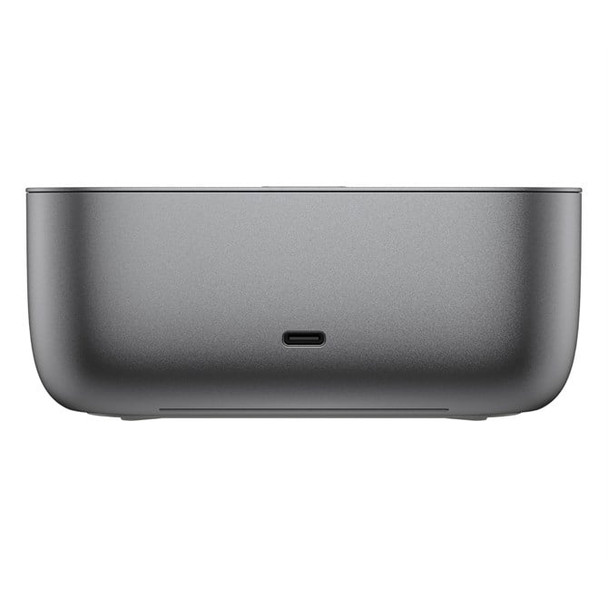

HP Thunderbolt 4 Ultra 280W G6 Dock AW5M5UT#ABU

Supercharge your workflow
Work without interruptions and maximize productivity with ultimate power delivery from the HP Thunderbolt 4 Ultra 280W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Host interface

Interface that enables a host controller to communicate with a driver.

Thunderbolt 4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

3


USB Power Delivery (USB PD)




USB Power Delivery up to

280 W


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2


DisplayPort version

1.4


Thunderbolt 4 ports quantity

1


Microphone in

The socket where a microphone is connected to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000, 2500 Mbit/s


Performance


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

8K Ultra HD


Maximum refresh rate

360 Hz


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Nano


Product colour

The colour e.g. red, blue, green, black, white.

Grey


LED indicators

Power


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China, Thailand


Compatibility

The other products, software and hardware this product can be used with.

Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - pcb.inc.hp /webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.


HP segment

Business


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

330 W


Software


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 11


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

MacOS


Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)





Software


Other operating systems supported

ChromeOS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 35 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 ?C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 95%


Operating altitude

-15 - 3048 m


Non-operating altitude

-15 - 12192 m


Weight & dimensions


Width

The measurement or extent of something from side to side.
1 mm


Depth

The distance from the front to the back of something.
1 mm


Height

The measurement of the product from head to foot or from base to top.

49.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

790 g


Packaging data


Package width

The distance from one side of the packaging to the other.

396 mm


Package depth

The distance from the front to the back of the packaging.
1 mm


Package height

The distance from the top to the bottom of the packaging.

95 mm


Package weight

Weight of the packaged product.

1.14 kg


Packaging content


Warranty card




Cables included

AC


Brand-specific features


HP GTIN (EAN/UPC) with options

(ABB) 198701752547; (ABU) 198701752615


HP GTIN (EAN/UPC)
8701752547, 198701752615


Technical details


Box contents

HP Thunderbolt 4 Ultra 280W G6 Dock; 330 W power adapter; Thunderbolt- 4 and 4.5 mm power barrel combination cable (1 m); Power cord; Product notice; Warranty card


General Product Safety Regulation (GPSR) URL

support.hp /us-en/document/ish_6126692-6126777-16?openCLC=true


Logistics data


Master (outer) cases per pallet layer

28 pc(s)


Other features


Compatible operating systems

List of desktop operating systems tested as compatible with this product.

Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS


Pallet dimensions (W x D x H) (imperial)
99.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51")


Pallet dimensions (W x D x H)

Size of pallets (Width x Depth x Height) in millimeters.
00 x 1000 x 140 mm


UNSPSC-code

43211602


Bundled software

Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.

Poly Lens with automatic firmware updates
