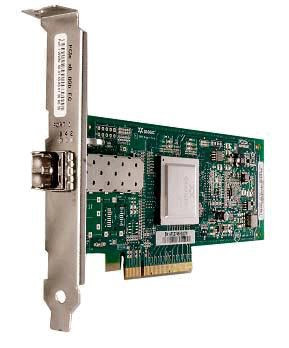

IBM 49Y3760-RFB QLogic HBA 8Gbit PCI-E 49Y3760-RFB

The QLogic 8Gb FC Single-port and Dual-port HBA for IBM System x are PCI Express 2.0 x8 8Gb Fibre Channel adapters with SFP+ LC-style connectors. The adapters connect to SFP+ Multimode Fiber SR optical modules. These adapters support 8 Gbps per port maximum bidirectional throughput for high-bandwidth storage (SAN). The PCI Express low profile form factor adapter can be used in either a standard PCI Express slot or a low profile PCI Express slot.

Design



Internal



Yes


Network



Full duplex



Yes


Maximum data transfer rate



8000 Mbit/s


Operational conditions



Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Fiber Channel over Ethernet



Yes


Package dimensions



Gross Weight (Package, kg)



0.2 kg


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



LC


Fiber ports quantity



1


Host interface



PCI Express


Interface



Fiber


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



2.5 cm


Product Height



6.4 cm


Product Width



16.7 cm


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


IBM


Warranty



1 Year(s)
