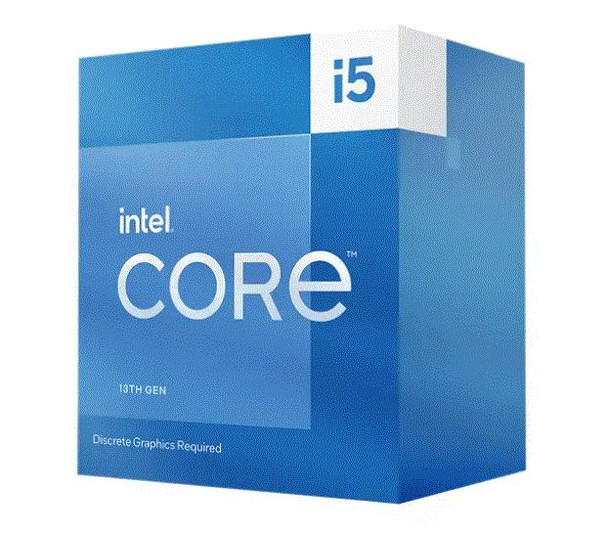

Intel BX8071513400F Core i5 13400F 4.6GHz Turbo. BX8071513400F

Intel� Gaussian & Neural Accelerator
Intel� Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel� GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.

Intel� Deep Learning Boost (Intel� DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

Intel� Speed Shift Technology
Intel� Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.

Intel� Turbo Boost Technology
Intel� Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don�t.

Intel� 64
Intel� 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

Intel� Volume Management Device (VMD)
Intel� Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.

Features



Commodity Classification Automated Tracking System (CCATS)



740.17B1


CPU configuration (max)



1


Direct Media Interface (DMI) Revision



4.0


Embedded options available



No


Execute Disable Bit



Yes


Export Control Classification Number (ECCN)



5A992C


Idle States



Yes


Market segment



Desktop


Maximum number of PCI Express lanes



20


PCI Express configurations



1x16+1x4, 2x8+1x4


PCI Express slots version



4.0, 5.0


Scalability



1S


Supported instruction sets



AVX 2.0, SSE4.1, SSE4.2


Thermal Monitoring Technologies



Yes


Use conditions



PC/Client/Tablet


Graphics



Discrete graphics card



No


Discrete graphics card model



Not available


On-board graphics card



No


On-board graphics card model



Not available


Logistics data



Harmonized System (HS) code



8542310001


Memory



Maximum internal memory supported by processor



192 GB


Memory bandwidth (max)



76.8 GB/s


Memory channels



Dual-channel


Memory types supported by processor



DDR4-SDRAM, DDR5-SDRAM


Non-ECC



Yes


Operational conditions



Tjunction



100 �C


Other features



L2 cache



9728 KB


Maximum internal memory



192 GB


Package dimensions



Gross Weight (Package, kg)



0.21000000000000002 kg


Processor



Box



Yes


Cooler included



Yes


Efficient cores



4


Efficient-core base frequency



1.8 GHz


Efficient-core boost frequency



3.3 GHz


Maximum number of DMI lanes



8


Maximum turbo power



148 Watt


Performance cores



6


Performance-core base frequency



2.5 GHz


Performance-core boost frequency



4.6 GHz


Processor ARK ID



230501


Processor base power



65 Watt


Processor boost frequency



4.6 GHz


Processor cache



20 MB


Processor cache type



Smart Cache


Processor codename



Raptor Lake


Processor cores



10


Processor family



Intel� Core� i5


Processor generation



13th gen Intel� Core� i5


Processor manufacturer



Intel


Processor model



i5-13400F


Processor operating modes



64-bit


Processor socket



LGA 1700


Processor threads



16


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel 64



Yes


Intel Turbo Boost Max Technology 3.0



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



Yes


Intel� Boot Guard



Yes


Intel� Control-flow Enforcement Technology (CET)



Yes


Intel� Deep Learning Boost (Intel� DL Boost)



Yes


Intel� Gaussian & Neural Accelerator (Intel� GNA) 3.0



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� OS Guard



Yes


Intel� Secure Key



Yes


Intel� Speed Shift Technology



Yes


Intel� Standard Manageability (ISM)



Yes


Intel� Thread Director



Yes


Intel� Turbo Boost Technology



2.0


Intel� Volume Management Device (VMD)



Yes


Product dimensions



Net Weight (Product, kg)



0.2 kg


Technical details



Launch date



Q1'23


Vendor information



Brand Name


Intel


Warranty



1 Year(s)


Weight & dimensions



Processor package size



45 x 37.5 mm
