Intel

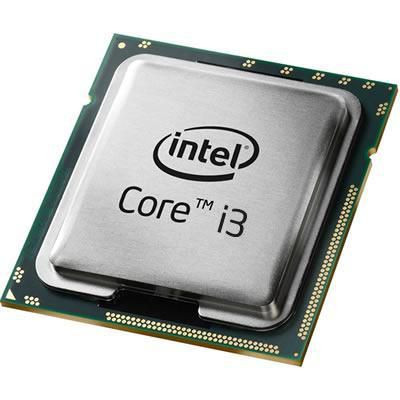

Intel CM8064601483551-RFB Core i3-4170T. Dual Core. CM8064601483551-RFB
(No reviews yet)
Write a Review
- UPC:
- 5706998277824
- MPN:
- CM8064601483551-RFB
- Condition:
- Refurbished
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Intel� Hyper-Threading Technology
Intel� Hyper-Threading Technology (Intel� HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel� 64
Intel� 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Enhanced Intel SpeedStep� Technology
Enhanced Intel SpeedStep� Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep� Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep� Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits?
Features
Commodity Classification Automated Tracking System (CCATS)
G077159
CPU configuration (max)
1
Embedded options available
No
Execute Disable Bit
Yes
Export Control Classification Number (ECCN)
5A992C
Graphics & IMC lithography
22 nm
Idle States
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
16
PCI Express configurations
1x16, 2x8, 1x8+2x4
PCI Express slots version
3.0
Scalability
1S
Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies
Yes
Thermal solution specification
PCG 2013A
Graphics
Maximum on-board graphics card memory
2 GB
Number of displays supported (on-board graphics)
3
On-board graphics card
Yes
On-board graphics card base frequency
200 MHz
On-board graphics card DirectX version
11.1
On-board graphics card dynamic frequency (max)
1150 MHz
On-board graphics card maximum resolution (DisplayPort)
3840 x 2160 Pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
3840 x 2160 Pixels
On-board graphics card maximum resolution (HDMI)
4096 x 2304 Pixels
On-board graphics card maximum resolution (VGA)
1920 x 1200 Pixels
On-board graphics card model
Intel� HD Graphics 4400
On-board graphics card OpenGL version
4.3
On-board graphics card outputs supported
Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub)
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
24 Hz
On-board graphics card refresh rate at maximum resolution (VGA)
60 Hz
Logistics data
Harmonized System (HS) code
8542310001
Memory
ECC
Yes
Maximum internal memory supported by processor
32 GB
Memory channels
Dual-channel
Memory clock speeds supported by processor
1333, 1600
Memory types supported by processor
DDR3-SDRAM, DDR3L-SDRAM
Memory voltage supported by processor
1.5 V
Operational conditions
Tcase
66.4 �C
Other features
Cache memory
3 MB
Graphics output
eDP/DP/HDMI/DVI/VGA
Intel� Virtualization Technology (Intel� VT)
VT-x
Maximum internal memory
32768 MB
Maximum internal memory
32 GB
Video decoding
Yes
Package dimensions
Gross Weight (Package, kg)
1.2 kg
Processor
Box
No
Bus type
DMI2
Compatible chipsets
Intel� B85, Intel� H81, Intel� H87, Intel� H97, Intel� Q85, Intel� Q87, Intel� Z87, Intel� Z97
Component for
PC
Cooler included
No
Generation
4th Generation
Memory bandwidth supported by processor (max)
25.6 GB/s
Processor ARK ID
81209
Processor base frequency
3.2 GHz
Processor cache
3 MB
Processor cache type
L3
Processor code
SR1TC
Processor codename
Haswell
Processor cores
2
Processor family
Intel� Core� i3
Processor generation
4th gen Intel� Core� i3
Processor lithography
22 nm
Processor manufacturer
Intel
Processor model
i3-4170T
Processor operating modes
64-bit
Processor series
Intel Core i3-4100 Desktop series
Processor socket
LGA 1150 (Socket H3)
Processor threads
4
Stepping
C0
System bus rate
5 GT/s
Thermal Design Power (TDP)
35 Watt
Processor special features
Conflict-Free processor
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel 64
Yes
Intel Enhanced Halt State
Yes
Intel Secure Key Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel Stable Image Platform Program (SIPP)
No
Intel Stable Image Platform Program (SIPP) version
0
Intel Trusted Execution Technology
No
Intel TSX-NI
No
Intel TSX-NI version
0.00
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel� AES New Instructions (Intel� AES-NI)
Yes
Intel� Clear Video HD Technology (Intel� CVT HD)
Yes
Intel� Hyper Threading Technology (Intel� HT Technology)
Yes
Intel� InTru� 3D Technology
Yes
Intel� Quick Sync Video Technology
Yes
Intel� Secure Key
Yes
Intel� Smart Cache
Yes
Intel� Transactional Synchronization Extensions
No
Intel� Turbo Boost Technology
No
Intel� vPro� Platform Eligibility
No
Intel� Wireless Display (Intel� WiDi)
Yes
Product dimensions
Net Weight (Product, kg)
1 kg
Technical details
Born on date
Q1'15
Bus bandwidth
5
Bus speed
5 GT/s
Bus type units
GT/s
Graphics max dynamic frequency
1.15 GHz
Last change
63903513
Launch date
Q1'15
Maximum graphics card memory
2 GB
Maximum graphics card memory
1740 MB
Maximum memory
32 GB
Maximum resolution & refresh rate (DisplayPort)
3840x2160@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)
3840x2160@60Hz
Maximum resolution & refresh rate (VGA)
1920x1200@60Hz
Number of graphics cores
12
OpenGL support
Yes
Processor brand name
Intel Core i3 Intel Core i3 Processor
Processor cache
3072 KB
Processor ID
0x41E
Product family
4th Generation Intel Core i3 Processors
Product name
Intel Core i3-4170T (3M Cache, 3.20 GHz)
Product type
Processor
Status
Discontinued
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
Video compression formats
Y, Yes
Vendor information
Brand Name
Intel
Warranty
1 Year(s)
Weight & dimensions
Processor package size
37.5 x 37.5 mm
