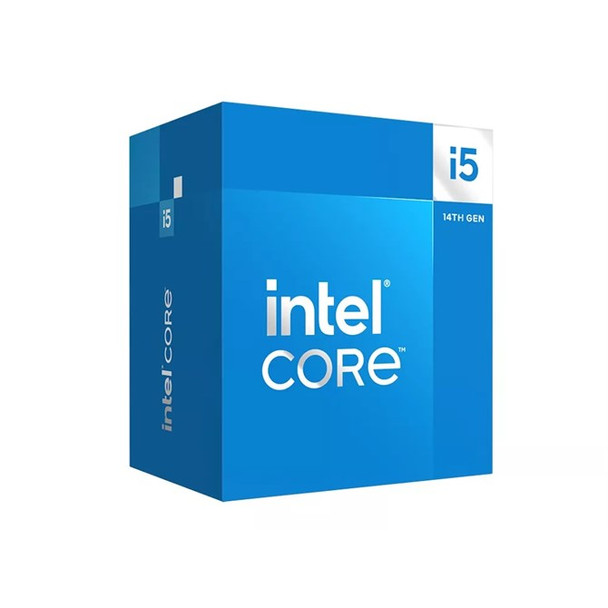

Intel Core I5-14400 Processor 20 MB Smart Cache Box BX8071514400

Commodity Classification Automated Tracking System (CCATS) : 740.17B1


Cooler included : Yes


CPU configuration (max) : 1


Direct Media Interface (DMI) Revision : 4.0


Discrete graphics card : No


Discrete graphics card model : Not available


EAN : 5032037279130


Efficient cores : 4


Efficient-core base frequency : 1.8 GHz


Efficient-core boost frequency : 3.5 GHz


Embedded options available : Yes


Enhanced Intel SpeedStep Technology : Yes


Execute Disable Bit : Yes


Export Control Classification Number (ECCN) : 5A992C


Graphics output : eDP 1.4b, DP 1.4a, HDMI 2.1


Harmonized System (HS) code : 8542310001


Idle States : Yes


Intel 64 : Yes


Intel Virtualization Technology (VT-x) : Yes


Intel Virtualization Technology for Directed I/O (VT-d) : Yes


Intel VT-x with Extended Page Tables (EPT) : Yes


Intel- AES New Instructions (Intel- AES-NI) : Yes


Intel- Boot Guard : Yes


Intel- Clear Video HD Technology (Intel- CVT HD) : Yes


Intel- Control-flow Enforcement Technology (CET) : Yes


Intel- Deep Learning Boost (Intel- DL Boost) on CPU : Yes


Intel- Gaussian & Neural Accelerator (Intel- GNA) 3:0 : Yes


Intel- Hyper Threading Technology (Intel- HT Technology) : Yes


Intel- OS Guard : Yes


Intel- Quick Sync Video Technology : Yes


Intel- Secure Key : Yes


Intel- Speed Shift Technology : Yes


Intel- Standard Manageability (ISM) : Yes


Intel- Thread Director : Yes


Intel- Turbo Boost Technology : 2.0


Intel- Volume Management Device (VMD) : Yes


L2 cache : 9728 KB


Launch date : Q1'24


Manufacturer : Intel


Manufacturer Part Code : BX8071514400


Market segment : Desktop


Maximum internal memory : 192 GB


Maximum internal memory supported by processor : 192 GB


Maximum number of DMI lanes : 8


Maximum number of PCI Express lanes : 20


Maximum turbo power : 148 W


Memory bandwidth (max) : 76.8 GB/s


Memory bandwidth supported by processor (max) : 76.8 GB/s


Memory channels : Dual-channel


Memory types supported by processor : DDR4-SDRAM, DDR5-SDRAM


Mode-based Execute Control (MBE) : Yes


Model : 1265


Multi-Format Codec Engines : 1


Number of displays supported (on-board graphics) : 4


Number of execution units : 24


On-board graphics card : Yes


On-board graphics card DirectX version : 12.0


On-board graphics card dynamic frequency (max) : 1550 MHz


On-board graphics card ID : 0x4682/0xA782


On-board graphics card maximum resolution (DisplayPort) : 7680 x 4320 pixels


On-board graphics card maximum resolution (eDP - Integrated Flat Panel) : 5120 x 3200 pixels


On-board graphics card maximum resolution (HDMI) : 4096 x 2160 pixels


On-board graphics card model : Intel UHD Graphics 730


On-board graphics card OpenGL version : 4.5


On-board graphics card outputs supported : Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1


On-board graphics card refresh rate at maximum resolution (DisplayPort) : 60 Hz


On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) : 120 Hz


On-board graphics card refresh rate at maximum resolution (HDMI) : 60 Hz


OpenCL version : 3.0


Package type : Box


PCI Express configurations : 1x16+1x4, 2x8+1x4


PCI Express slots version : 4.0, 5.0


Performance cores : 6


Performance-core base frequency : 2.5 GHz


Performance-core boost frequency : 4.7 GHz


Processor ARK ID : 236788


Processor base power : 65 W


Processor boost frequency : 4.7 GHz


Processor cache : 20 MB


Processor cache type : Smart Cache


Processor codename : Raptor Lake


Processor cores : 10


Processor family : Intel- Core- i5


Processor generation : Intel- Core- i5 (14th gen)


Processor manufacturer : Intel


Processor model : i5-14400


Processor operating modes : 64-bit


Processor package size : 45 x 37.5 mm


Processor socket : LGA 1700


Processor threads : 16


Product family : Core


Product name : i5-14400


Scalability : 1S


Status : Launched


Supported instruction sets : AVX 2.0, SSE4.1, SSE4.2


Thermal Monitoring Technologies : Yes


Tjunction : 100 -C


Use conditions : PC/Client/Tablet
