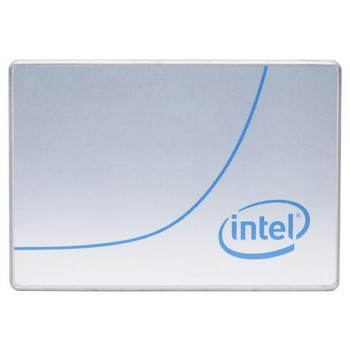

Intel SSDPF2KE064T1N1 N1 SSDPF2KE064T1N1

Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

Features



Commodity Classification Automated Tracking System (CCATS)



G162706L1


Component for



Server/workstation


End-to-End Data Protection



Yes


Enhanced Power Loss Data Protection technology



Yes


Export Control Classification Number (ECCN)



5A992C


Hardware encryption



Yes


Interface



PCI Express 4.0


Mean time between failures (MTBF)



2000000 Hour


Memory type



TLC 3D NAND


NVMe



Yes


Random latency - read (up to)



75 µs


Random latency - write (up to)



15 µs


Random read (100% span)



1100000 IOPS


Random write (100% span)



390000 IOPS


Security algorithms



256-bit AES


Sequential latency - read (up to)



10 µs


Sequential latency - write (up to)



13 µs


SSD capacity



6.5 TB


SSD form factor



U.2


SSD temperature monitoring



Yes


Use conditions



Server/Enterprise


Logistics data



Harmonized System (HS) code



84717070


Operational conditions



Maximum operating temperature



70 °C


Non-operating vibration



3.13 G


Operating temperature (T-T)



0 - 70 °C


Operating vibration



2.17 G


Other features



Internal memory type



PCIe 4.0 x4, NVMe


Launch date



Q2'22


Power consumption (active)



18 Watt


Processor family



Intel SSD D7-P5620


Sequential reading



7100 MB/s


Sequential writing speed



4200 MB/s


SSD endurance rating



35.0 PBW


SSD shock



1000G,0.5ms


Status



Launched


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Power consumption (idle)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
