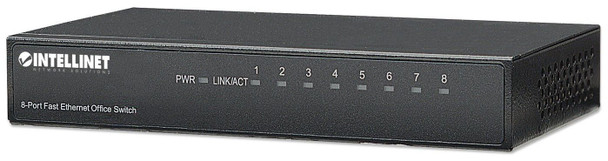

Intellinet 523318 8-Port Fast Ethernet Office 523318

Easily add more computers or other Ethernet devices to your network

The Intellinet 8-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking for a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure, and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the Intellinet 10/100 Mbps switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions Fast Ethernet Office Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserving energy and save money.

Versatile
The Fast Ethernet Office Switch connects up to eight computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.

Easy to Install and Maintain
The auto features of this switch make installation Plug and Play and hassle free. There is no configuration required, and you don't need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDIX crossover.

Data transmission



MAC address table



1024 entries


Packet buffer memory



0.096 MB


Design



Certification



FCC Class B, CE


LED indicators



Y, Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



10G support



No


Auto MDI/MDI-X



Yes


Copper ethernet cabling technology



100BASE-TX, 10BASE-T


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 70 �C


Other features



Connectivity technology



Wired


Package dimensions



Gross Weight (Package, kg)



0.47 kg


Packaging data



Manual



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Power connector



DC-in jack


Power



Power consumption (typical)



3.5 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.36 kg


Product Depth



8.5 cm


Product Height



2.5 cm


Product Width



15.5 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
