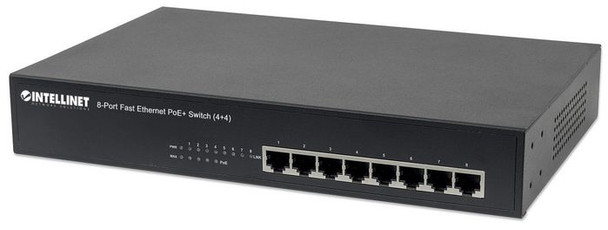

Intellinet 561075 8-Port Fast Ethernet PoE+ 561075

Save installation time and money with PoE. _x000D_
_x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (561075) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (four of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 70 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.

Data transmission



Forwarding rate



0.1488 Mpps


MAC address table



2000 entries


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148800 pps


Store-and-forward



Yes


Switching capacity



1.6 Gbit/s


Design



Certification



FCC A, CE


Housing material



Metal


LED indicators



Activity, PoE, Power


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Control and Provisioning of Wireless Access Points (CAPWAP)



Yes


Switch type



Unmanaged


Network



Auto MDI/MDI-X



Yes


Cable types supported



Cat3, Cat4, Cat5


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 °C


Storage temperature (T-T)



-10 - 70 °C


Packaging data



Cables included



AC


Manual



Yes


Mounting brackets included



Yes


Rack mount kit



Yes


Performance



Buffer size



768 KB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Power connector



AC-in jack


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



80 Watt


Power protection features



Over voltage, Overload, Short circuit


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



4


Total Power over Ethernet (PoE) budget



70 Watt


Product dimensions



Net Weight (Product, kg)



1.5 kg


Product Depth



17.9 cm


Product Height



4.4 cm


Product Width



28 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
