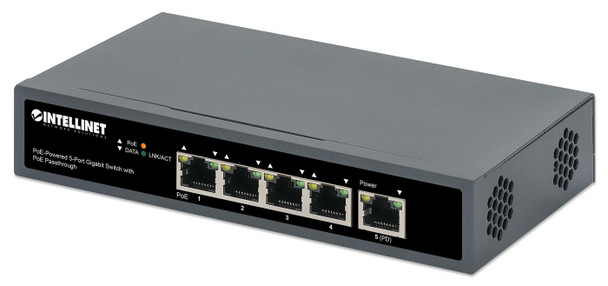

Intellinet 561808 Network Switch Gigabit 561808

Get the most out each Power over Ethernet connection with this PoE passthrough switch
The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps.

Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.

Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device.

The Perfect Workgroup Switch
When you connect the PD port (port 5) to a PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.

Eliminate Bottlenecks with Gigabit Speeds
Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.

Wall-mount option
For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.

Data transmission



Jumbo frames support



Yes


MAC address table



2048 entries


Packet buffer memory



1 MB


Packet forwarding rate (1 Gbps)



1488000 pps


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148800 pps


Store-and-forward



Yes


Switching capacity



10 Gbit/s


Design



Certification



FCC Class A, CE, RoHS, UKCA, NDAA


Housing material



Metal


LED indicators



Activity, Link, PoE, Power


Wall mountable



Yes


Network



10G support



No


Cable types supported



Cat3, Cat5, Cat5e


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



0 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.44 kg


Packaging data



Cables included



AC


Manual



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



72 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Total Power over Ethernet (PoE) budget



65 Watt


Product dimensions



Net Weight (Product, kg)



1.11 kg


Product Depth



9.3 cm


Product Height



3.2 cm


Product Width



16.8 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
