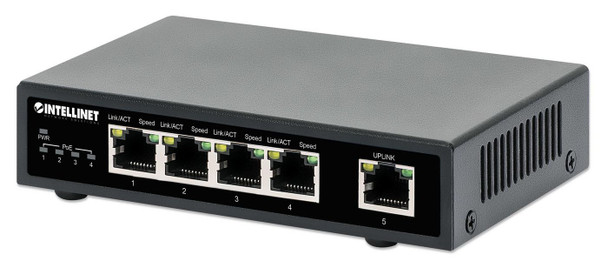

Intellinet 561839 Network Switch Gigabit 561839
(No reviews yet)
Write a Review
- UPC:
- 0766623561839
- MPN:
- 561839
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Desktop 5-Port PoE Switch - Supports 10/100/1000 Mbps, Power over Ethernet 802.3at
The 5-Port Gigabit Ethernet PoE+ Switch from Intellinet Network Solutions passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1000 Mbps.
High-power PoE+ with output up to 30 watts
This switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.
Data transmission
MAC address table
2000 entries
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Store-and-forward
Yes
Switching capacity
10 Gbit/s
Design
Certification
FCC Class A, CE, RoHS
Housing material
Metal
LED indicators
Activity, Link, PoE, Power
Product colour
Black
Rack mounting
No
Network
10G support
No
Cable types supported
Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
20 - 85 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-10 - 70 �C
Package dimensions
Gross Weight (Package, kg)
1.12 kg
Packaging data
Cables included
AC
Manual
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Uplink ports quantity
1
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
65 Watt
Power protection features
Overload, Short circuit
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 Watt
Total Power over Ethernet (PoE) budget
62 Watt
Product dimensions
Net Weight (Product, kg)
0.86 kg
Product Depth
8.6 cm
Product Height
2.9 cm
Product Width
13 cm
Vendor information
Brand Name
Intellinet
Warranty
1 Year(s)
