Intellinet Power Over Ethernet Poe Injector 1 Port 48 V Dc Ieee 802.3Af Complian 524179-UK

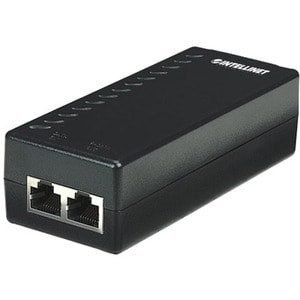

Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant (UK Power Cord) - 120 V AC, 230 V AC Input - 48 V DC, 350 mA Output - 1 x 10/100Base-T Input Port(s) - 1 x 10/100Base-T Output Port(s) - 15.40 W Reduce costs by using existing Cat5 cable to provide both power and data The Power over Ethernet Injector from Intellinet Network Solutions allows you to connect your IEEE 802.3af-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af powered device (PD) to a switch. Reduce Wiring Costs No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data. Preserve Existing Investments Does your existing LAN switch not support the new IEEE 802.3af PoE standard? Well, don???t let that stop you from realizing the benefits of delivering DC power over the existing Cat5 Ethernet cabling. Use the Model 503389 PoE Injector until you are able to upgrade your LAN switch to a model that supports the IEEE 802.3af PoE standard. Protect Your Equipment Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads (over 450 mA) and high voltages (voltage exceeding 52 V).
Interfaces/Ports

Input Ports1 x 10/100Base-T
Output Ports1 x 10/100Base-T

Technical Information

Protection TypeShort Circuit
Overload Protection

Miscellaneous

Additional InformationRJ45 Input Connector Pinout
Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: NC (not connected)
Pin 5: NC (not connected)
Pin 6: Tx- (data transmit)
Pin 7: NC (not connected)
Pin 8: NC (not connected)
RJ45 Output Connector Pinout (Data + Power)
Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: -Vdc_return (+) (feeding power [+])
Pin 5: -Vdc_return (+) (feeding power [+])
Pin 6: Tx- (data transmit)
Pin 7: -Vdc (feeding power [-])
Pin 8: -Vdc (feeding power [-])
LEDs
AC Powered (red)
Channel Powered (green)
Channel Alarm (red)
Power
Power consumption: 19 Watts (maximum)
Environmental
Plastic housing (ABS)
Operating temperature: 0 - 60??C (32 - 140??F)
Operating humidity: 10 - 90% RH, non-condensing
Storage temperature: -20 - 85??C (-4 - 185??F)

Package ContentsPower over Ethernet (PoE) Injector
Power Cable
Instruction Sheet

Compatibility
Intellinet Wireless Products:
Wireless 300N Access Points (524735, 524711)
High Power Wireless G Access Point (503082)
PoE Splitter (502900)
Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR)

Certifications & Standards
Standards:IEEE 802.3af (Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
Certifications:FCC Class B, Part 15, CE 89/336/EEC


General Information

Product TypePoE Injector
Manufacturer Part Number524179UK
icintracom
ManufacturerIC INTRACOM
Product Model524179
Product NamePower over Ethernet (PoE) Injector
Brand NameIntellinet


Physical Characteristics

Weight (Approximate)140 g
Length120 mm
Height35 mm
Width50 mm

Power Description

Input Voltage120 V AC
230 V AC
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Maximum Output Current350 mA
Maximum Output Power15.40 W
Maximum Output Voltage48 V DC
