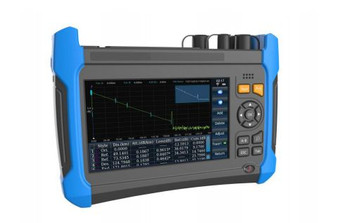

Lanview LVO-TEST fiber Mini-Pro OTDR tester LVO-TEST

Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test
fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof.

The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , RJ45cable sequence , IL and lighting functions.

It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .

Logistics data



Products per master (outer) case



18 pc(s)


Quantity per pack



1 pc(s)


Package dimensions



Gross Weight (Package, kg)



0.3 kg


Packaging content



AC adapter included



Yes


Batteries included



Yes


Power



Battery capacity



4000 mAh


Battery technology



Lithium


Standby time



20 Hour


Product dimensions



Net Weight (Product, kg)



0.26 kg


Product Depth



4.2 cm


Product Height



17.5 cm


Product Width



8.2 cm


Technical details



Built-in display



Yes


Calibrated wavelengths



850, 1300, 1310, 1490, 1550, 1625


Display type



LCD


Easy to use



Yes


Fiber mode structure



Multi-mode, Single-mode


Maximum cable length



60000 m


RoHS compliance



Yes


Supported connectors



SC, LC, ST


Test type



Transmission testing


USB port



Yes


Wavelength range



800-1700 nm


Vendor information



Brand Name


Lanview


Warranty



3 Year(s)


Weight & dimensions



Dimensions (WxDxH)



175x82x42 mm
