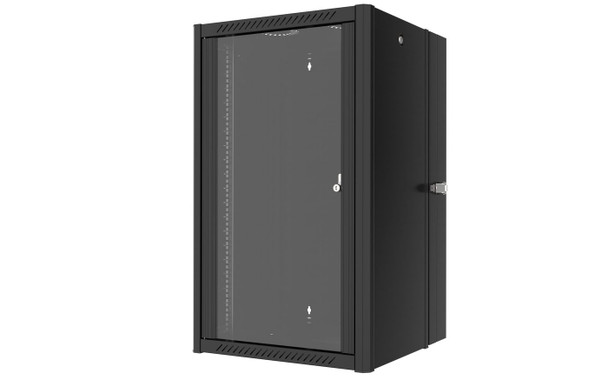

Lanview RWP20U45BL-D 19" 20U W=600mm D=600mm RWP20U45BL-D

Product Dimensions:
Rack: WxDxH(mm): 600 x 450 x 995mm

Double wallmount section: WxDxH(mm): 600x150x986

Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.

The double wall mounted back section allows for installation of further 19" compatible equipment, ideal for housing cable harnesses, patch panels and other equipment. with the cable inlet hole in the back it is ideal to feed cables through. Equipments, conforming with 19" installation and of 70mm depth, may be attached inside the double wall mounting section.

By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.

Since the side panels are detachable, access to the cabinet is ensured both from the front and sides in wall mounting applications and from the all sides in free standing applications.

Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.

By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.

Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.

This item number consists of two parts: RWP12U45BL + RWMD12UBL

Features



Cable entry point



Yes


Castor wheels



No


Cooling type



Passive


Frame type



Closed


Front door construction



Glass/Steel


Front door key lock



Yes


International Protection (IP) code



IP20


Key lock



Yes


Material



Glass, Steel


Mounting hole shape



Round


Preassembled



Yes


Product colour



Black


Rack capacity



20U


Rack rails



Yes


Removable side panels



Yes


Side panel key lock



Yes


Type



19" Wall Mounted Rack


Package dimensions



Depth (package,cm)



52 cm


Gross Weight (Package, kg)



55.02 kg


Height (package,cm)



120 cm


Width (package,cm)



64 cm


Product dimensions



Net Weight (Product, kg)



54 kg


Product Depth



60 cm


Product Height



99.5 cm


Product Width



60 cm


Vendor information



Brand Name


Lanview


Warranty



5 Year(s)


Weight & dimensions



Size (imperial)



19 "
