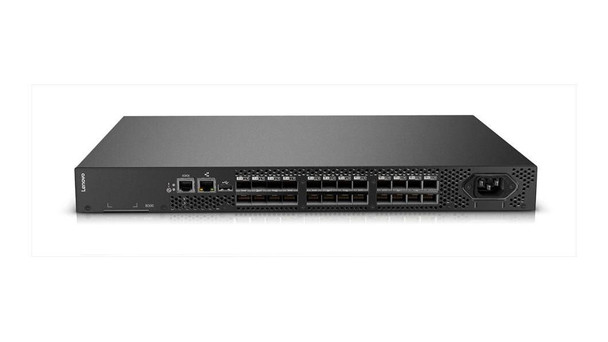

Lenovo 3873AR6 B300 Managed 1U Black 3873AR6

Features and performance
The Lenovo B300 Entry Fibre Channel (FC) Switch is purpose-built for the high-performance storage connectivity required for business-critical applications. The Lenovo B300 operates at 8Gbps, 4Gbps, 2Gbps and 1Gbps link speeds while providing optimized, automated and integrated SAN capabilities.

The B300 supports storage arrays from Lenovo Storage for analytics and online transactions. The B300 is available in a standard 8-port configuration (upgradeable to 24 ports), which includes the 8Gbps optics. It is an entry SAN 1U switch for small storage networks.

Simple Scalability
This FC Switch allows �pay-as-you-grow� scalability by providing 8-port license upgrades for 24 total ports. Optional management and trunking features are available as software upgrades. The switch provides an affordable, flexible foundation for entry-level SANs or an edge switch for core-to-edge SAN environments.

The B300 SAN Scalable Switch can also be deployed as an Access Gateway allowing servers to connect to NPIVenabled SAN fabrics (24-port configuration required). The switch also interoperates with multiple vendors� FC storage arrays and switches to support clients as they add or adjust storage capacity.

Simplified Management
The B300 with Fabric Vision technology provides a breakthrough hardware and software solution that helps simplify monitoring, maximize network availability and reduce costs.

This optional software feature enables administrators to avoid problems before they impact operations, helping organizations meet service level agreements.
To simplify deployment, the B300 features the EZSwitchSetup wizard and other usability and configuration enhancements.

Design



Form factor



1U


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



Auto-sensing



Yes


Flow control support



Yes


Full duplex



Yes


Port mirroring



Yes


Rate limiting



Yes


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Ports & interfaces



Installed SFP modules quantity



8


SFP module slots quantity



24


USB 2.0 ports quantity



1


Power



AC input voltage



100 - 240 V


Power consumption (typical)



75 Watt


Power supply included



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



30.7 cm


Product Height



4.3 cm


Product Width



42.9 cm


Security



Access Control List (ACL)



Yes


Security algorithms



SSH, SSL/TLS


SSH/SSL support



Yes


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
