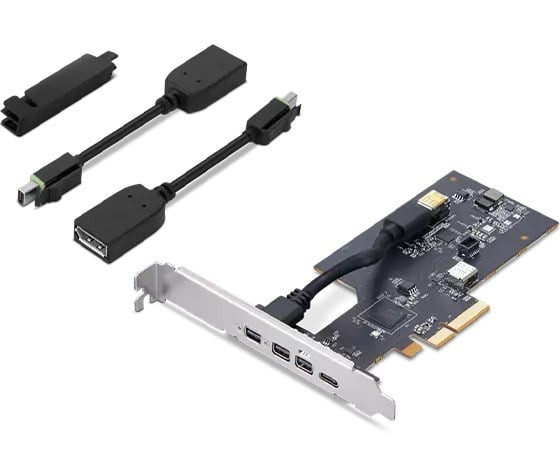

Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort Thunderbolt 4XF1L53431

The following specification describes a custom x4 high profile PCIe add-in card that will provide 1 rear customer facing and 1 internal Thunderbolt- 4 (TBT4) branded ports. The x4 high profile PCIe add-in card will utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports (to be used as inputs from graphics cards) and 1 mini display port for connection to an external monitor. The x4 high profile PCIe add-in card's internal TBT4 port will be used for possible future TBT offerings through use of a TBT bridge or hub.

Specs




Ports & interfaces


Host interface

Interface that enables a host controller to communicate with a driver.

PCIe


Host interface gender

Male


Output interface

The socket (port) where the output connectors are connected.

Mini DisplayPort, Thunderbolt 4


Design


Internal

The product is built in.




Purpose

What the product is used for.

Server


Cooling type

The method used to cool the device or to cool the air around the device.

Passive


Hot-Plug support

Device has hot-plug capability, which means that user can replace system components without shutting down the system.




Certification

BSMI?CE,Morocco?FCC,IC,VCCI


Power


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

45 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 ?C


Operating relative humidity (H-H)
- 80%



Weight & dimensions


Width

The measurement or extent of something from side to side.
4.8 mm


Depth

The distance from the front to the back of something.

68.9 mm


Height

The measurement of the product from head to foot or from base to top.

22 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0 g


Packaging data


Package width

The distance from one side of the packaging to the other.
7 mm


Package depth

The distance from the front to the back of the packaging.
4 mm


Package height

The distance from the top to the bottom of the packaging.

53 mm


Package weight

Weight of the packaged product.

400 g


Package type

The type of product package e.g. box.

Box
