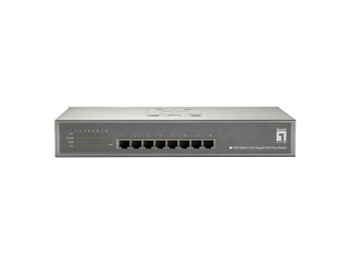

LevelOne GEP-0821 8-PORT GIGABIT POE-PLUS GEP-0821

The LevelOne GEP-0821 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 123.2W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an affordable solution for PoE deploying infrastructure.

- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch rackmount kit included
- Total PoE power budget: 123.2W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



8192 entries


Packet forwarding rate (1 Gbps)



1488000 pps


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148000 pps


Store-and-forward



Yes


Switching capacity



16 Gbit/s


Design



Certification



FCC, CE


LED indicators



Activity, PoE


Product colour



Grey


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Cable types supported



Cat5, Cat6, Cat7


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-TX


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 °C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-40 - 70 °C


Package dimensions



Depth (package,cm)



23 cm


Gross Weight (Package, kg)



0.5 kg


Height (package,cm)



8.2 cm


Width (package,cm)



37.1 cm


Packaging data



Cables included



AC


Quick start guide



Yes


Performance



Buffer size



128 KB


Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power connector



DC-in jack


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



2 A


Power consumption (typical)



130 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



8


Total Power over Ethernet (PoE) budget



123.3 Watt


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Depth



18.5 cm


Product Height



4.4 cm


Product Width



28 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
