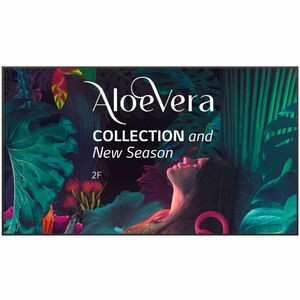

Lg Electronics Lg 75UH5N-M. Product Design: Digital Signage Flat Panel. Display 75UH5N-M

LG 75UH5N-M. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m??, HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black Eye-catching Large Screen A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation. Sturdy Design with Fire Flame Resistance The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces. Slim Depth with Even Bezel Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options. Versatile Operation with Multi-USB With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting. High Resolution Display It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen. Convenient webOS Platform The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment. Durability that Provides Reliability Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation. Enhanced Security Features The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified. SuperSign Solutions SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Software

Operating SystemwebOS 6.0

Audio

SpeakersYes
Number of Speakers2

Network & Communication

BluetoothYes
Wireless LANYes

Power Description

Input Voltage120 V AC
230 V AC
Power Consumption (DPM)0.5W

Technical Information

FeaturesBrightness Sensor
Carrying Handle
Conformal Coating (Power Board)
ConnectedCare
Control Manager
Crestron Connected
External Input Rotation
FailOver
Group Manager
Gyroscopic Sensor
HDMI (CEC)
Picture by Picture (PbP)
Picture in Picture
Pro:Idiom
Smart Energy Saving
SNMP Manageable
Temperature Sensor
Tile Mode Setting (15 ?� 15)
Wake on LAN (WOL)
Auto Set ID
Booting Logo Image
Panel TechnologyAdvanced Super Dimension Switch ( ADS )
Bezel Width12.90 mm
On Screen Display (OSD) LanguagesCzech
Danish
Dutch
Finnish
French
German
Greek
Italian
Arabic
Russian
Simplified Chinese
Spanish
Swedish
Turkish
Portuguese (Europe)
Norwegian
Korean
Japanese
Brazilian Portuguese
Chinese
Speaker Power20 W
HDCP Version1.4/2.2
Ingress Protection (IP) RatingIP5X
Operation Hours24 Hours/7 Days
Maximum Heat Generation889.4 kJ
Content SynchronizationRS-232C
Embedded CMSLocal Contents Scheduling
Image Sticking Minimization (ISM) MethodYes


Environmental Conditions

Minimum Operating Temperature0??C
Maximum Operating Temperature40??C
Minimum Operating Humidity10%
Maximum Operating Humidity80%

Physical Characteristics

Weight (Approximate)35.70 kg
Height95.9 cm
Width167.9 cm
Depth2.9 cm
VESA Mount Standard600 x 400
Bezel ColorBlack

Video

Brightness500 cd/m??
Color Depth8-bit+FRC
Standard Refresh Rate60 Hz
Dynamic Contrast Ratio100,000,0:1
Native Contrast Ratio1,200:1
Color Gamut95% BT.709

General Information

Product TypeDigital Signage Display
Manufacturer Part Number75UH5N-M
solutions.lg/us
ManufacturerLG Electronics
Product Model75UH5N-M
Product Name75" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security
Brand NameLG

Display & Graphics

Aspect Ratio16:9
Display Resolution3840 x 2160
Response Time8 ms
Viewable Screen Size75"
OrientationLandscape/Portrait
Horizontal Viewing Angle178??
Vertical Viewing Angle178??
Backlight TechnologyEdge LED
Maximum LED Life5.7 Year

Miscellaneous

Additional InformationSurface Treatment (Hard Coating) : No
Surface Treatment (Anti Glare) : No
Color Depth : 8 bit + FRC, 1.07 Billion Colors
Transparency : No
Internal Memory : 16 GB
Cisco Certified Compatibility : No
PoE Type : No
BTU Heat Generation (Typ.) : 546 BTU
Direct Sunlight : No
External Speaker Out (3.5 mm) : No
Power Loop Out : No
HDMI Out : No
Power Loop In : No
RGB In : No
Power In (DC From External PWR Box) : No
OPS Power Built-in : No
OPS Compatible : No
UL Certification : No
DisplayPort In : Yes (x1) HDCP 2.2/1.3
IR Out : No (Support IR daisy chain via RS-232C In/Out)
RS-232C In (3.5 mm 4-pin) : Yes (x1)
RS-232C In (D-sub 9-pin) : No
RS-232C Out (3.5 mm) : Yes (x1)
Power Type : Built-in Power
Local Key Operation: Yes

TAA CompliantNo
Energy StarYes
Country of AssemblyMexico
Compatible SoftwareSuperSign Control+
SuperSign
SuperSign Cloud
Mobile CMS
SuperSign CMS

Interfaces/Ports

Number of Network (RJ-45) Ports1
Network (RJ-45)No
Audio Line InNo
Audio Line OutYes
Number of HDMI Inputs3
Number of USB 2.0 Ports2
DisplayPort InYes
Number of Audio Line Out1
USB Type-CNo
DisplayPort OutputNo
DVI-D InNo
RS-232C InputYes
RS-232C OutputYes
Number of Infrared Inputs1
