Lindy

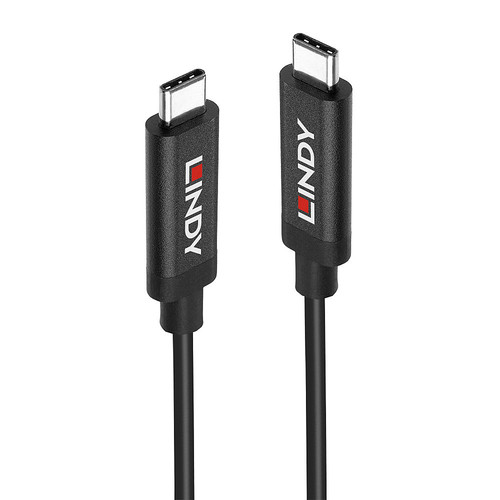

Lindy 5m USB 3.1 Gen 2 C/C Active Cable 43308
- UPC:
- 0000000000000
- MPN:
- 43308
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.
The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Information about USB 3.0, 3.1 and 3.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
Features
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1
This is the first connector in the device.
USB C
Connector 2
This is the second connector in the device.
USB C
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
What the connector contacts are covered with (layer on top).
Nickel/Gold
Cable jacket material
Polyvinyl chloride (PVC), Thermoplastic elastomer (TPE)
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
000 Mbit/s
Maximum data transfer rate
Gbit/s
Product colour
The colour e.g. red, blue, green, black, white.
Black
USB Power Delivery (USB PD)
USB Power Delivery up to
60 W
Weight & dimensions
Cable length
How long the cable is.
5 m
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
5.3 mm
Packaging data
Package type
The type of product package e.g. box.
Bag
Package width
The distance from one side of the packaging to the other.
236 mm
Package height
The distance from the top to the bottom of the packaging.
255 mm
Package weight
Weight of the packaged product.
0 g
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 ?C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 ?C
Certificates
Compliance certificates
CE, REACH, RoHS
Logistics data
Harmonized System (HS) code
84733080
View AllClose
The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Information about USB 3.0, 3.1 and 3.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
Features
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1
This is the first connector in the device.
USB C
Connector 2
This is the second connector in the device.
USB C
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
What the connector contacts are covered with (layer on top).
Nickel/Gold
Cable jacket material
Polyvinyl chloride (PVC), Thermoplastic elastomer (TPE)
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
000 Mbit/s
Maximum data transfer rate
Gbit/s
Product colour
The colour e.g. red, blue, green, black, white.
Black
USB Power Delivery (USB PD)
USB Power Delivery up to
60 W
Weight & dimensions
Cable length
How long the cable is.
5 m
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
5.3 mm
Packaging data
Package type
The type of product package e.g. box.
Bag
Package width
The distance from one side of the packaging to the other.
236 mm
Package height
The distance from the top to the bottom of the packaging.
255 mm
Package weight
Weight of the packaged product.
0 g
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 ?C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 ?C
Certificates
Compliance certificates
CE, REACH, RoHS
Logistics data
Harmonized System (HS) code
84733080
Additional Information
Shipping: |
Usually shipped within 3-5 working days |
Delivery: |
Usually delivered within 5-7 working days |
