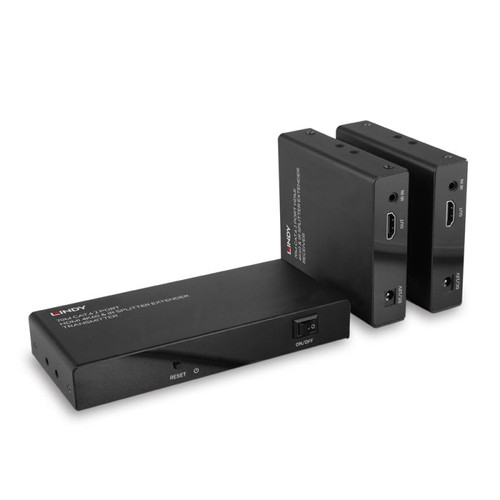

Lindy 70M Cat.6 2 Port Hdmi 4K60 & Ir Splitter Extender. Type: Av Transmitter & 38385

Lindy 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 70 m. Connectivity technology: Wired. Receiver dimensions (WxDxH): 100 x 88 x 23 mm, Receiver weight: 199 g, Transmitter dimensions (WxDxH): 154 x 103 x 23 mm. Quantity per pack: 3 pc(s), Package width: 292 mm, Package depth: 238 mm. Cables included: IR, Packaging content: 70m Cat.6 2 Port HDMI?� 4K60 Splitter Extender 2 x Receivers IR Emitte The Lindy 70m Cat.6 2 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI?� signals to multiple displays using standard Cat.6 network cables. Scalable Content Distribution This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution. Immersive 4K and HDR Support With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs. Seamless IR Control The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup. Simultaneous PoC Distribution The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations. Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Media & Performance

Twisted Pair Cable StandardCategory 6

Technical Information

Connectivity TechnologyWired
Maximum Operating Distance70 m
Number of Output Devices Supported2

Video

Graphics Modes4K
Full HD
Maximum Video Resolution3840 x 2160

General Information

Product TypeVideo Extender Transmitter
Manufacturer Part Number38385
lindy
ManufacturerLindy Electronics
Product Name70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender
Brand NameLINDY

Interfaces/Ports

Number of Network (RJ-45) Ports3
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs2
HDMI InYes
HDMI OutYes
Remote (IR) Output1
Remote (IR) Input1


Miscellaneous

Application/UsageRetail
Gaming
Display
Digital Signage System
Lecture Hall
Package Contents70m Cat.6 2 Port HDMI?� 4K60 Splitter Extender
2 x Receivers
IR Emitter Cable, 1.2m
2 x IR Receiver Cable, 1.2m
2 x Transmitter Mounting Brackets & Screws
4 x Receiver Mounting Brackets & Screws
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual




Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Physical Characteristics

Transmitter Height23 mm
Transmitter Width154 mm
Transmitter Depth103 mm
Receiver Height23 mm
Receiver Width100 mm
Receiver Depth88 mm
Transmitter Weight (Approximate)263.1 g
Receiver Weight (Approximate)199.6 g
Product ColorBlack
Color FamilyBlack
