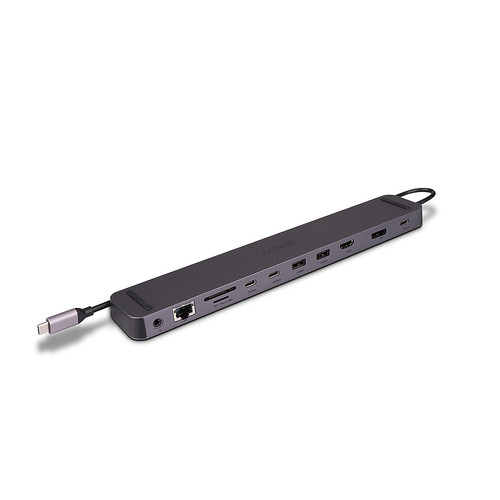

Lindy Dst-Mini Xt 810 Usb-C Laptop Mini Docking Station With Single Display 8K O 43392

Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) and 100W Pass-Through Charging. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Power connector: USB Type-C, Power supply: 15 W. Width: 270 mm, Dep The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming. This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI. The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.** This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate. *Please note that macOS does not support MST. ** Please note that the Docking Station requires 15W for its own operation.
Network & Communication

Ethernet TechnologyGigabit Ethernet

Miscellaneous

Package ContentsDST-Mini XT 810 Docking Station
Lindy Manual

Compatibility
Compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices

Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Software

Operating System SupportedLinux
ChromeOS
Android
Windows
macOS

Physical Characteristics

Weight (Approximate)230 g
Height16 mm
Width270 mm
Depth45 mm
Product ColorAnthracite
Color FamilyGrey

Interfaces/Ports

Host InterfaceUSB Type C
HDMIYes
HDMI Version2.1
Number of HDMI Ports1
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
DisplayPortYes
Total Number of USB Ports6
Number of DisplayPorts1
Headphone/Microphone Combo PortYes
Number of RJ-45 Ports1
USB Type-CYes
USB Type-C Detail2x USB Type C(Female), 1 x USB Type C (Female) PD port, 1x USB Type C (Male)
DisplayPort Version1.4a
Number of USB Type-C Ports4
Number of USB Type-A Ports2
USB Power Delivery100W
USB Type-AYes


General Information

Product TypeDocking Station
Manufacturer Part Number43392
lindy
ManufacturerLindy Electronics
Product ModelXT 810
Product NameDST-Mini XT 810 Docking Station
Product LineDST-Mini
Brand NameLINDY

Technical Information

Cable Length36 cm
Device SupportedTablet PC
Smartphone
Notebook
Desktop PC
Connectivity TechnologyWired
FeaturesPower Delivery Pass-through
Charging CapabilityYes
Memory Card SupportedSD
microSD
Memory Card ReaderYes
Maximum Data Transfer Rate1.25 GB/s
Number of Displays Supported2
Supported Resolutions7680 x 4320
3840 x 2160
Screen Mode Supported4K
8K
Management FeaturesPXE Boot
MAC Address Pass-through
Wake-on-LAN
