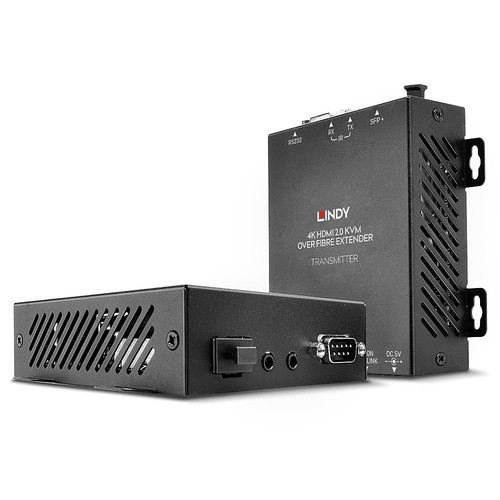

Lindy Electronics Lindy 300M Fibre Optic Hdmi 4K60 And Usb Kvm Extender. Type: T 39392

Lindy 300m Fibre Optic HDMI 4K60 and USB KVM Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 300 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. Transmitter width: 11 cm, Transmitter depth: 11 cm, Transmitter height: 3 cm KVM Extenders are devices which allow users to work on a computer from a distance by extending the connection between a computer and keyboard, monitor and mouse. The Fibre Optic HDMI 4K60 KVM Extender is an effective, reliable solution for extending high quality 4K HDMI signals over distances up to 300m with standard LC OM3 fibre cable. Support for HDMI 18G signals allows for the transmission of highly detailed 3840x2160@60Hz resolutions, perfect for detailed content in control rooms, medical setups or security installations. This extender also supports lossless audio formats including Dolby TrueHD and DTS-HD to add powerful multi-channel sound to video content, providing an enhanced experience and sense of immersion for the viewer. USB KM connectivity via 2 USB HID ports allow for a keyboard and mouse at the receiver to control an HDMI equipped PC from a remote PC setup, which can be stored in a secure or controlled temperature environment, while seamlessly providing consistent video content from the source display. The use of LC fibre between the transmitter and receiver provides a reliable, lower cost connection for much longer distances that what is possible over copper cabling, great for use in electronically andldquo;noisyandrdquo; environments such as factory shop floors or medical installations. With the ability to extend signals up to 300m using the two included units, the transmitter can be easily connected to a variety of HDMI source devices such as PCs and laptops in a more convenient location, while the receiver can be placed in a suitable viewing area with a LFD (large format display), monitor or projector, ensuring there is no distraction from the display from bulky source devices. This versatility provides a suitable system for use in various scenarios such as educational presentations, CAD facilities or remote server administration. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device. RS-232 connections also allow for integration into pre-installed control systems. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue. The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver, further enhancing this system focus on providing high quality 4K HDMI content over distances easily and with minimum hassle for the user.
Power Description

Input Voltage5 V DC

Miscellaneous

Package Contents1 x Transmitter Unit
1 x Receiver Unit
2 x SFP+ Fibre Modules
IR Emitter Cable, 1.8m
IR Receiver Cable, 1.8m
8 x Wall Plugs & 8 x Mounting Screws
8 x Rubber Feet
2 x Multi-Country Power Supply (UK, EU, US & AUS) Barrel size: 5.5/2.5mm
Lindy Manual

Environmentally FriendlyYes

Video

Maximum Video Resolution3840 x 2160
Graphic Mode4K

Physical Characteristics

Form FactorDesktop
Transmitter Height30 mm
Transmitter Width110 mm
Transmitter Depth110 mm
Receiver Height30 mm
Receiver Width110 mm
Receiver Depth110 mm
Transmitter Weight (Approximate)270 g
Receiver Weight (Approximate)270 g
Product ColorBlack


Interfaces/Ports

USBYes
HDMIYes
Number of HDMI Ports2
Number of USB Ports3

Technical Information

Connectivity TechnologyWired
Maximum Operating Distance300 m
Number of Computers Supported1
Number of Local Users Supported1
Device TypeKVM Extender

General Information

Product TypeKVM Extender
Manufacturer Part Number39392
lindy
ManufacturerLindy Electronics
Product Name300m Fibre Optic HDMI 4K60, USB, IR & RS232 KVM Extender
Brand NameLINDY
