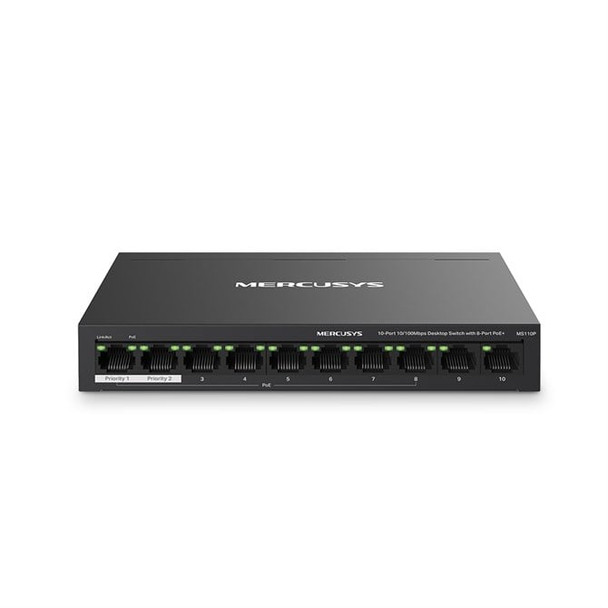

Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ MS110P
(No reviews yet)
Write a Review
- UPC:
- 6957939001179
- MPN:
- MS110P
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
8 PoE+ Ports (65 W Budget) for Network Deployment
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Web-based management
Using a website/web application to manage something.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Fast Ethernet (10/100)
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Policy-based routing
Flow control support
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
,100 Mbit/s
Auto-negotiation
Data transmission
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
00 entries
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Stackable
Devices can be placed on top of each other.
Product colour
The colour e.g. red, blue, green, black, white.
Black
Wall mountable
The product can be mounted on (attached to ) a wall.
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
220 V
AC input frequency
50 Hz
Power
DC input voltage
53.5 V
Input current
1.31 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
2.96 W
Power consumption (max)
The maximum amount of power used by the device.
77.52 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet plus (PoE+) ports quantity
2
Power over Ethernet (PoE) power per port
65 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
The heat generated by the power supply.
263.568 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
1 mm
Depth
The distance from the front to the back of something.
98 mm
Height
The measurement of the product from head to foot or from base to top.
27 mm
Packaging content
Cables included
AC
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
View AllClose
