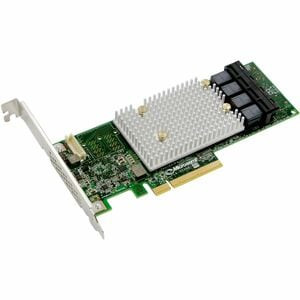

Microchip Adaptec Smartraid 3154-16I Sas Controller 12Gb/S Sas Pci Express 3.0 X 2295000-R

Microchip Adaptec SmartRAID 3154-16i SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 - 4 GB Flash Backed Cache - Plug-in Card - RAID Supported - 0, 1, 5, 6, 50, 60, 10 ADM, 1 ADM, 10 RAID Level - 4 x SFF-8643 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC, Linux The 12 Gbps Adaptec SmartRAID 3154-16i RAID adapter has 16 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Microchip's industry leading Smart Storage stack delivers maximum reliability and best-in-class performance that all RAID levels come to expect, plus unique features like Mixed Mode support (RAID and HBA devices can be used simultaneously), adapter power management (reduces power consumption up to 30 percent), and Advanced Data Management (ADM) features that allow data migration from existing RAID arrays. SmartRAID 3154-16i adapters include maxCache 4.0, and when coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS as well as acceleration and latency optimization through caching. The SmartRAID 3154-16i adapters also integrate flash-based cache backup to enable instant cache protection. The tethered ASCM-35F capacitor module ensures data is safely backed up to Flash memory in case of power loss. With broad operating system support and ecosystem compatibility, SmartRAID adapters are easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. SmartRAID 3154 RAID adapters are ideal solutions for high performance enterprise servers that require maximum connectivity and security.
Memory

Cache Memory4 GB

Interfaces/Ports

Total Number of SAS Ports16
Number of SAS Ports (Internal)16
SAS Connector Details4 x SFF-8643

Technical Information

Host InterfacePCI Express 3.0 x8
RAID Levels60
6
50
5 ADM
1 ADM
1
0
Controller Type12Gb/s SAS
RAID SupportedYes
Data Backup TypeFlash Backed Cache


Miscellaneous

Platform SupportedPC
Linux
Country of OriginSingapore
Environmentally FriendlyYes

Physical Characteristics

Weight (Approximate)500 g
Form FactorPlug-in Card
Length167.6 mm
Height64.4 mm

General Information

Product TypeSAS Controller
Manufacturer Part Number2295000-R
microchip
ManufacturerMicrochip Technology Inc.
Product Model3154-16i
Product NameSmartRAID 3154-16i Single
Product LineSmartRAID
Product Series3100
Brand NameMicrochip Adaptec
