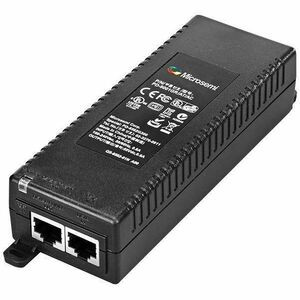

Microchip Technology PD-9001GR/AT/AC-EU PD-9001GR/AT/AC-EU

Microchip Technology PD-9001GR/AT/AC-EU Microchip's PD-9001GR is a single-port, high-power solution for remote powering of current and emerging high-power applications. Generating up to 30W, the PD-9001GR enables remote power for applications including 802.11n access points, Pan-Tilt-Zoom (PTZ) cameras and video phones. It complies to the IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11n access points.
Interfaces/Ports

Input Ports1 x 10/100/1000Base-T
Output Ports1 x 10/100/1000Base-T

Physical Characteristics

Weight (Approximate)380 g
Length140 mm
Height32.5 mm
Width53 mm

General Information

Product TypePoE Injector
Manufacturer Part NumberPD-9001GR/AT/AC-EU
microchip
ManufacturerMicrochip Technology Inc.
Product ModelPD-9001GR
Product NameSingle Port, High Power Gigabit Midspan, 802.3at Compliant
Brand NameMicrochip


Miscellaneous

Package ContentsSingle Port, High Power Gigabit Midspan, 802.3at Compliant
Power Cord

CompatibilityAccess Points
Pan-Tiltzoom (PTZ) Cameras
Video-Phones
Network Devices

Certifications & StandardsCE
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
UL/cUL Per IEC 60950-1
IEEE 802.3at
IEEE 802.3af

Country of OriginChina
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Power Description

Input Voltage120 V AC
230 V AC
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Maximum Input Current800 mA
Maximum Output Power30 W
Maximum Output Voltage55 V DC
