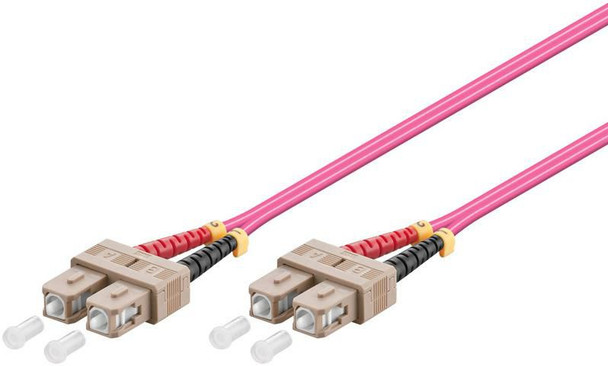

MicroConnect FIB222010-4 SC/UPC-SC/UPC 10m OM4 FIB222010-4

OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.

Features



Cable length



10 m


Cladding diameter



125 �m


Connector 1



SC/UPC


Connector 1 gender



Male


Connector 2



SC/UPC


Connector 2 gender



Male


Core diameter



50 �m


Fiber mode structure



Multi-mode


Fibre optic type



OM4


Full duplex



Yes


Halogen-free



Yes


Insertion loss



0.3 dB


Jacket material



Low smoke zero halogen (LSZH)


Product colour



Pink


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



-40 - 85 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.25 kg


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


MicroConnect


Warranty



25 Year(s)


Weight & dimensions



Cable diameter



2 mm
