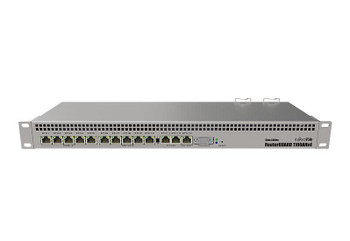

MikroTik RB1100AHX4 RouterBOARD 1100AHx4 with RB1100AHX4

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

Design



LED indicators



Y, Yes


Product colour



Aluminium


Rack capacity



1U


Rack mounting



Yes


Features



Built-in processor



Yes


Internal memory



128 MB


Processor cores



4


Processor frequency



1400 MHz


Storage media



Flash


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.3af, IEEE 802.3at


Package dimensions



Gross Weight (Package, kg)



2.4 kg


Packaging data



Cables included



SATA


Ports & interfaces



Ethernet LAN (RJ-45) ports



13


Power



AC input voltage



100 - 240 V


Power consumption (typical)



25 Watt


Power over Ethernet (PoE)



Yes


Power source type



AC


Product dimensions



Net Weight (Product, kg)



1.86 kg


Product Depth



14.8 cm


Product Height



4.7 cm


Product Width



44.4 cm


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


MikroTik


Warranty



1 Year(s)


WAN connection



Ethernet WAN



Yes
