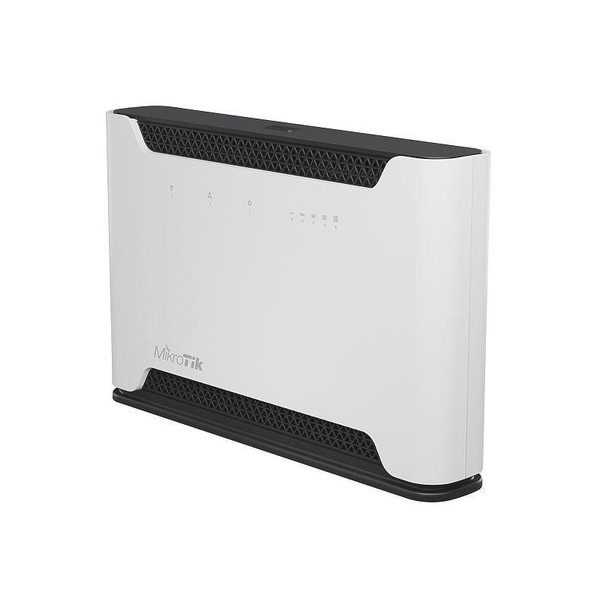

MikroTik RBD53G-5HACD2HND-TC EG12-EA Chateau LTE12 with RouterOS L4 RBD53G-5HACD2HND-TC&EG12-EA

Chateau LTE12
One router to delight them all � introducing the ultimate home AP with LTE support.

Let�s face it � most of the standard issue access points can�t really satisfy the extremely diverse client base � they either lack features, users want more speed and higher gain, the price is too high or they look weird. We decided to take all the aspects that are important for most home users and create a single device that will make them happy � this is the MikroTik Chateau.

It is a high-speed, dual-band home access point with CAT12 LTE � for really fast Internet anywhere, anytime. But LTE is not the only option � Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss � such as streaming high-quality videos.

Not only our RouterOS software comes with robust security options, we also focus on the production security. There is no outsourcing, every device is assembled in our premises and all the components come from reputable, trusted partners � such as Qualcomm. We cooperate with European law-makers and work hard to ensure full compliance with all the necessary safety policies. MikroTik is all about smooth, long-term cooperation without surprises.

Reach speeds of up to 600 Mbps with carrier aggregation, as CAT12 allows devices to use three bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. Chateau LTE12 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.

Design



LED indicators



LAN, LTE, Power, WLAN


Product colour



Black, White


Product type



Tabletop router


Features



Built-in processor



Yes


Certification



CE/RED, EAC, ROHS


Flash memory



16 MB


Harmonized System (HS) code



85176990


Internal memory



256 MB


Processor cores



4


Processor frequency



716 MHz


Logistics data



Harmonized System (HS) code



85176990


Management features



Reset button



Yes


Mobile network



3G



Yes


4G



Yes


4G bands supported



700, 800, 850, 900, 1800, 2100, 2300, 2500, 2600


4G standard



LTE-TDD & LTE-FDD


Mobile network generation



4G


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Ethernet LAN interface type



Gigabit Ethernet


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Operational conditions



Operating temperature (T-T)



-40 - 70 �C


Package dimensions (verified)



Depth Verified



16.2 cm


Gross Weight Verified



0.89 kg


Height Verified



13.2 cm


Width Verified



45.7 cm


Packaging content



AC adapter included



Yes


Packaging data



AC adapter included



Yes


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



5


Memory card slot(s)



No


USB 2.0 ports quantity



1


USB port



Yes


Power



External power adapter



Yes


Output voltage



12 - 28 V


Power consumption (typical)



23 Watt


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.78 kg


Product Depth



4.4 cm


Product Height



24 cm


Product Width



15.6 cm


Vendor information



Brand Name


MikroTik


Warranty



15 Month(s)


WAN connection



3G/4G USB modem compatibility



No


DSL WAN



No


Ethernet WAN



No


SIM card slot



Yes


Wireless LAN features



Modulation



64-QAM, 256-QAM


Top Wi-Fi standard



Wi-Fi 5 (802.11ac)


Wi-Fi band



Dual-band (2.4 GHz / 5 GHz)


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


WLAN data transfer rate (first band)



300 Mbit/s


WLAN data transfer rate (max)



867 Mbit/s


WLAN data transfer rate (second band)



867 Mbit/s
