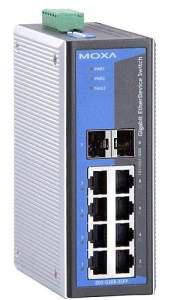

Moxa EDS-G308-2SFP Network Switch Unmanaged EDS-G308-2SFP

The EDS-G308 series are equipped with 8 Gigabit Ethernet ports and up to 2 fiber optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connection, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The EDS-G308 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with an extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-G308 switches can be installed easily on a DIN-Rail or in distribution boxes.

Data transmission



Maximum data transfer rate



1 Gbit/s


Packet buffer memory



0.13 MB


Supported data transfer rates



10/100/1000 Mbps


Design



Certification



FCC, CISPR


Safety



UL508


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Copper ethernet cabling technology



1000BASE-TX, 100BASE-TX, 10BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 60 °C


Storage temperature (T-T)



-40 - 85 °C


Optical fiber



Fiber ethernet cabling technology



1000BASE‑LX, 100BASE-FX


Other features



Connectivity LEDs



1


Connectivity technology



Wired


Dimensions (WxDxH)



53.6 x 135 x 105 mm


Electromagnetic emissions



EN61000-4-2 (ESD), lvl 3; EN61000-4-3 (RS), lvl 3; EN61000-4-4 (EFT), lvl 3; EN61000-4-5 (Surge), lvl 3; EN61000-4-6 (CS), lvl 3


Mounting



Y


Mounting interface



DIN-Rail


Networking features



Ethernet, Fast Ethernet, Gigabit Ethernet


Shock



IEC 60068-2-27


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Mean time between failures (MTBF)



325000 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



6


Fiber ports quantity



2


Power connector



DC-in jack


Power



Input current



0.34 A


Input voltage



24 V


Power source



VDC


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Vendor information



Brand Name


Moxa


Warranty



1 Year(s)
