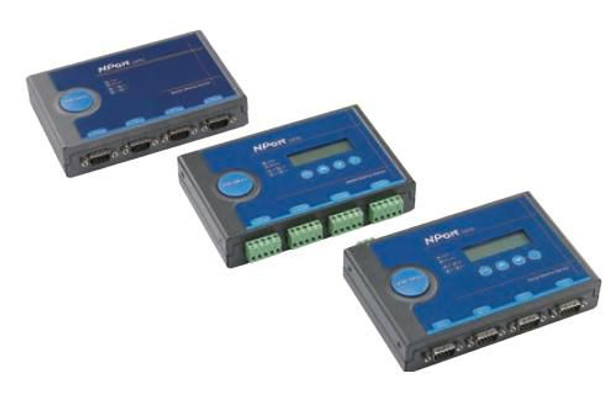

Moxa NPORT 5430 Serial Server Rs-422/485 NPORT 5430

- 10/100M auto-sensing Ethernet
- 4 serial ports, with support for RS-232, RS-422, and RS-485
- Built-in 15 KV ESD surge protection for all serial signals
- Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
- Choice of configuration methods: Web console, Telnet console, and Windows utility
- SNMP MIB-II for network management
- 2 KV isolation protection for NPort 5430I/5450I/5450I-T
- 40 to 75�C operating temperature range (T model)
- Supports Moxa's MXview industrial network management software via the MXview Plug-in

Network Readiness for up to Four Serial Devices
NPort 5400 series device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bi-directional. By using NPort device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices, and distribute management hosts over the network.

Independent Operation Mode for Each Serial Port
NPort 5400 series device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort 5400 series operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.

User-friendly LCD Panel for Easy Installation
An LCD panel is built into the NPort 5400�s top panel, with four buttons for inputting data, configuration, and selecting the operation mode. The LCD panel displays the server name, serial number, and IP address, and can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide temperature models.)

Dual DC Power Inputs
NPort 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power input gives users greater flexibility for use with different applications.

Adjustable Termination and Pull High/Low Resistors
The NPort 5400 series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort� 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.

Design



Safety



UL 60950-1, EN 60950-1


Indication



Link/Act LED



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.25 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Input voltage



12 - 48 V


Product dimensions



Net Weight (Product, kg)



0.19 kg


Protocols



Supported network protocols



ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, SNTP, Rtelnet, ARP


Technical details



Baud rate



921.6 Kbit/s


Certification



CE, FCC, EN 55022 Class A, FCC Part 15 Subpart B Class A, EN 55024, EN 60601-1-2 Class B, EN 55011


Ethernet LAN data rates



10, 100


Flow control support



Yes


Management protocols



SNMP v1


Serial interface type



RS-422/485


Serial ports quantity



4


Vendor information



Brand Name


Moxa


Warranty



1 Year(s)
