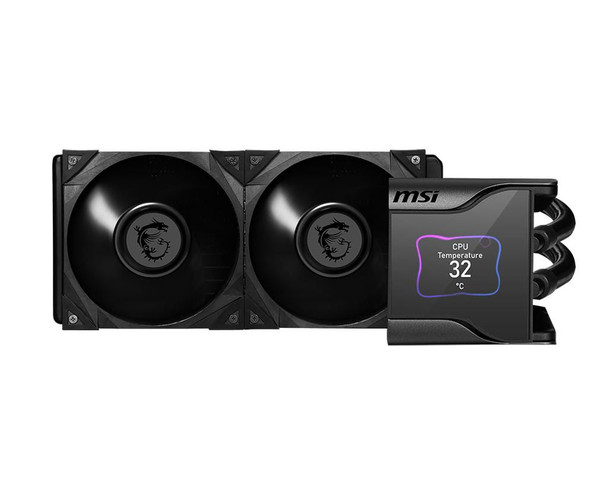

MSI 9S6-6A0431-001 Meg Coreliquid S280 Liquid 9S6-6A0431-001

The MEG CORELIQUID S Series is here to provide the ultimate silence cooling. It is equipped with MSI's innovative MEG SILENT GALE P14 silent gaming fan and supports 0 rpm fan mode. The 2.4� IPS display can also help you see a conglomerate of hardware information or customizable graphics and videos. The MEG CORELIQUID S Series descends from the top, and you just can�t hear it coming.

SILENT COOLING
MSI�s MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.

MEG SILENT GALE P14
The MEG SILENT GALE P14 is MSI�s innovative silent fan designed to generate the most silent airflow.

CONCENTRATED COOLING PERFORMANCE
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.

FAN 0 RPM
The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.

2.4� CUSTOMIZABLE IPS DISPLAY
The MEG CORELIQUID S Series comes with a 2.4� IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.

TOTAL CONTROL IN YOUR HANDS
Everything ranging from MEG CORELIQUID S Series� fan speed to the IPS display can be adjusted through the MSI Center.

LGA 1700 COMPATIBLE
The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

Design



Material



Aluminium


Number of fans



2 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Other features



Noise level



21.2 dB


Package dimensions



Gross Weight (Package, kg)



2.34 kg


Performance



Fan bearing technology



Hydro Dynamic Bearing (HDB)


Fan noise level (max)



24.9 dB


Fan noise level (min)



21.2 dB


Fan speed (max)



1800 RPM


Fan static pressure



2.2 mmH2O


Fan's mean time to failure (MTTF)



50000 Hour


Maximum airflow



82.27 cfm


Pulse-width modulation (PWM) support



Yes


Pump motor speed



2800 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



All-in-one liquid cooler


Power



Fan current



0.5 A


Fan power consumption



6 Watt


Pump current



0.33 mA


Pump power consumption



4 Watt


Product dimensions



Net Weight (Product, kg)



1.8 kg


Vendor information



Brand Name


MSI


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



140 x 140 x 25 mm


Radiator depth



2.7 cm


Radiator height



14 cm


Radiator width



31.48 cm


Tube length



40 cm


Waterblock depth



5.4 cm


Waterblock height



9.5 cm


Waterblock width



9.5 cm
